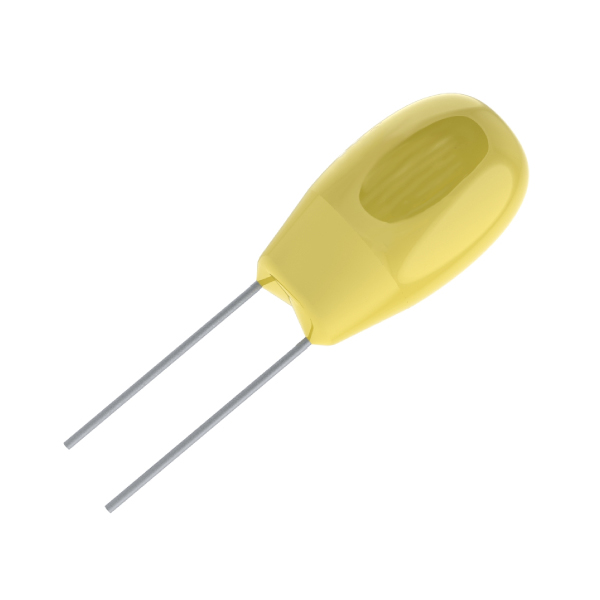

T354 Series

Manufacturer: KEMET

Catalog

TANTALUM CAPACITORS - SOLID LEADED 35V 22UF 20%

Part	Features	Tolerance	Voltage - Rated	Package / Case	Manufacturer Size Code	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension
KEMET T354K226M035AT	General Purpose	20 %	35 V	Disc Radial	T354K	1.3 Ohm	6.35 mm	0.25 in	0.35 in	8.9 mm	22 µF	Conformal Coated	0.61 in	15.5 mm	-55 C	125 °C	Through Hole
KEMET T354C225M035AS	General Purpose	20 %	35 V	Disc Radial	T354C	5 Ohm	6.35 mm	0.25 in	0.197 in	5 mm	2.2 µF	Conformal Coated	9.6 mm		-55 C	125 °C	Through Hole	0.378 "
KEMET T354A105K035AT	General Purpose	10 %	35 V	Radial	A	8 Ohm	6.35 mm	0.25 in	0.175 in	4.45 mm	1 µF	Conformal Coated			-55 C	125 °C	Through Hole		0.34 in	8.64 mm
KEMET T354K476K020AS	General Purpose	10 %	20 V	Radial	K	1.2 Ohm	6.35 mm	0.25 in	0.35 in	8.9 mm	47 µF	Conformal Coated	0.61 in	15.5 mm	-55 C	125 °C	Through Hole
KEMET T354L187K010AS	General Purpose	10 %	10 V	Disc Radial	T354L		6.35 mm	0.25 in	0.35 in	8.9 mm	180 µF	Conformal Coated	18.1 mm		-55 C	125 °C	Through Hole	0.713 in
KEMET T354D335K035AS	General Purpose	10 %	35 V	Disc Radial	T354D	4 Ohm	6.35 mm	0.25 in	0.197 in	5 mm	3.3 µF	Conformal Coated			-55 C	125 °C	Through Hole
KEMET T354C106K010AS7301	General Purpose	10 %	10 V	Disc Radial	T354C	5 Ohm	6.35 mm	0.25 in	0.197 in	5 mm	10 µF	Conformal Coated	9.6 mm		-55 C	125 °C	Through Hole	0.378 "
KEMET T354J157K006AT	General Purpose	10 %	6 VDC	Disc Radial	T354J	900 mOhm	6.35 mm	0.25 in	0.331 in		150 µF	Conformal Coated			-55 C	125 °C	Through Hole		0.551 in	14 mm	8.4 mm
KEMET T354L156K050AT7301	General Purpose	10 %	50 VDC	Disc Radial	T354L	1.2 Ohm	6.35 mm	0.25 in	0.35 in	8.9 mm	15 µF	Conformal Coated	18.1 mm		-55 C	125 °C	Through Hole	0.713 in
KEMET T354K106K050AT	General Purpose	10 %	50 VDC	Radial	K	1.6 Ohm	6.35 mm	0.25 in	0.35 in	8.9 mm	10 µF	Conformal Coated	0.61 in	15.5 mm	-55 C	125 °C	Through Hole
