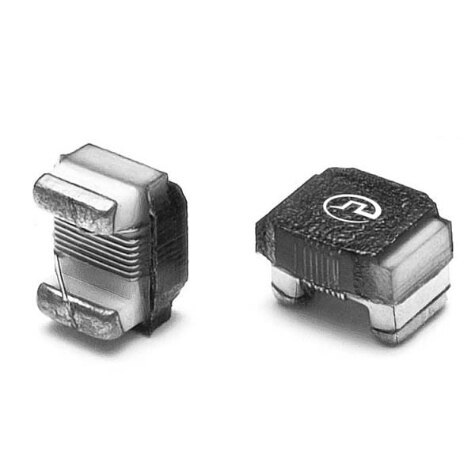

PE-1008CLH Series
RF Inductors - SMD 1008 6.8uH 1000mA DCR=382mOhms RF
Manufacturer: Pulse Electronics
Catalog
RF Inductors - SMD 1008 6.8uH 1000mA DCR=382mOhms RF
Beta
⌘K
RF Inductors - SMD 1008 6.8uH 1000mA DCR=382mOhms RF
RF Inductors - SMD 1008 6.8uH 1000mA DCR=382mOhms RF
RF Inductors - SMD 1008 6.8uH 1000mA DCR=382mOhms RF
| Part | Current - Saturation (Isat) | Inductance Frequency - Test | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | DC Resistance (DCR) [Max] | Supplier Device Package | Type | Mounting Type | Frequency - Self Resonant | Shielding | Package / Case | Package / Case | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 300 mA | 1 MHz | 0.039 in | 1 mm | 2.1 mm | 2.5 mm | 0.083 " | 0.098 in | 85 °C | -40 C | 1 A | 434 mOhm | 1008 | Multilayer | Surface Mount | 15 MHz | Shielded | 2520 Metric | 1008 | 10 µH |
 Pulse Electronics | 350 mA | 1 MHz | 0.039 in | 1 mm | 2.1 mm | 2.5 mm | 0.083 " | 0.098 in | 85 °C | -40 C | 1 A | 382 mOhm | 1008 | Multilayer | Surface Mount | 20 MHz | Shielded | 2520 Metric | 1008 | 6.8 µH |
