AHES32 Series

Manufacturer: Panasonic Electronic Components

Catalog

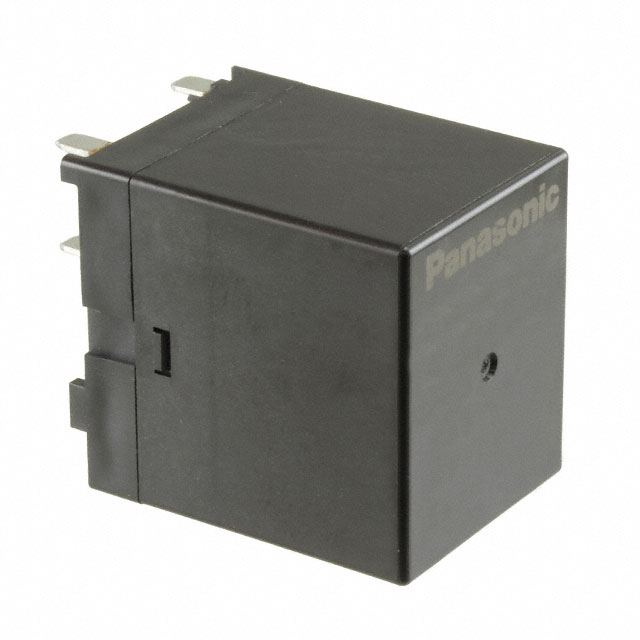

POWER RELAY, DPST-NO, 48 VDC, 35 A, HE-S SERIES, THROUGH HOLE, NON LATCHING

Part	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Coil Voltage	Switching Voltage	Mounting Type	Contact Rating (Current)	Operate Time	Must Release Voltage	Seal Rating	Approval Agency	Coil Insulation	Termination Style	Relay Type	Must Operate Voltage	Coil Current	Contact Material	Coil Type	Contact Form	Load - Max Switching	Switching Voltage [Max]
Panasonic Electronic Components AHES3293	1.22 kOhms	55 °C	-40 C	10 ms	48 VDC	277 VAC	Through Hole	35 A	30 ms	2.4 VDC	Sealed - Flux Protection	CQC cURus VDE	Class F	PC Pin	General Purpose	36 VDC	39 mA	Silver Tin Oxide (AgSnO)	Non Latching	DPST-NO (2 Form A)
Panasonic Electronic Components AHES3292	306 Ohms	55 °C	-40 C	10 ms	24 VDC	277 VAC	Through Hole	35 A	30 ms	1.2 VDC	Sealed - Flux Protection	CQC cURus VDE	Class F	PC Pin	General Purpose	18 VDC	78 mA	Silver Tin Oxide (AgSnO)	Non Latching	DPST-NO (2 Form A)
Panasonic Electronic Components AHES3291Q	76.6 Ohms	70 °C	-40 C	10 ms	12 VDC		Through Hole	40 A	30 ms	0.6 VDC	Sealed - Flux Protection	CQC cURus VDE		PC Pin	General Purpose	9 VDC	157 mA	Silver Tin Oxide (AgSnO)	Non Latching	DPST-NO (2 Form A)	4400 W 19200 VA	110 VDC 480 VAC
Panasonic Electronic Components AHES3290Q	19.1 Ohms	70 °C	-40 C	10 ms			Through Hole	40 A	30 ms	0.3 VDC	Sealed - Flux Protection	CQC cURus VDE		PC Pin	General Purpose	4.5 VDC	313 mA	Silver Tin Oxide (AgSnO)	Non Latching	DPST-NO (2 Form A)	4400 W 19200 VA	110 VDC 480 VAC
Panasonic Electronic Components AHES3292Q	306.4 Ohms	70 °C	-40 C	10 ms	24 VDC		Through Hole	40 A	30 ms	1.2 VDC	Sealed - Flux Protection	CQC cURus VDE		PC Pin	General Purpose	18 VDC	78 mA	Silver Tin Oxide (AgSnO)	Non Latching	DPST-NO (2 Form A)	4400 W 19200 VA	110 VDC 480 VAC
