L6R48 Series

Catalog

AC/DC DESKTOP ADAPTER 24V 48W

Part	Weight	Weight	Region Utilized	Form	Voltage - Output	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Input Type	No Load Power Consumption	Power (Watts)	Approval Agency	Applications	Output Connector	Output Connector [diameter]	Output Connector [x]	Input Connector	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Standard Number	Cord Length	Cord Length	Cord Length	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max)

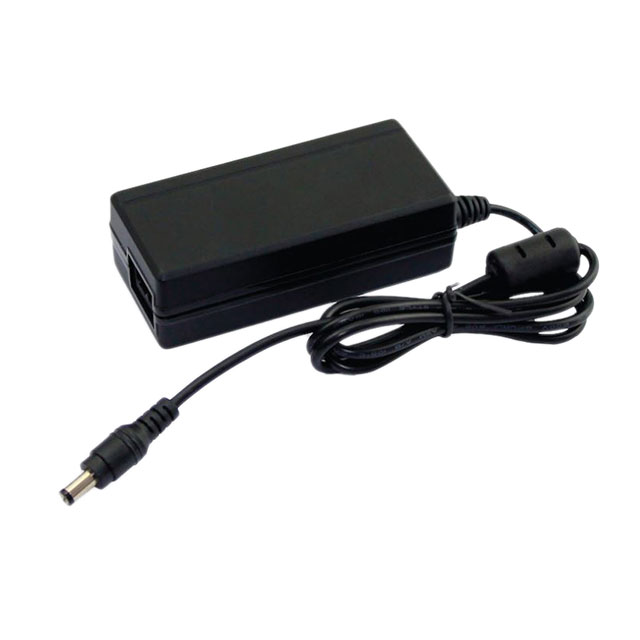

Tri-Mag, LLC L6R48D-240-C8	0.617 lb	280 g	International	Desktop (Class II)	24 V	2 A	4.72 "	34 mm	2.01 "	120 mm	1.34 "	51 mm	Cord (Sold Separately)	100 mW	48 W	cUL FCC UL	ITE (Commercial)	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	IEC 320-C8	40 °C	264 VAC	90 VAC	Level VI	60950-1	1 m	39.4 in
Tri-Mag, LLC L6R48D-360-C14	0.617 lb	280 g	International	Desktop (Class I)	36 V	1.33 A	4.72 "	34 mm	2.01 "	120 mm	1.34 "	51 mm	Cord (Sold Separately)	100 mW	48 W	cUL FCC UL	ITE (Commercial)	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	IEC 320-C14	40 °C	264 VAC	90 VAC	Level VI	60950-1	1 m	39.4 in

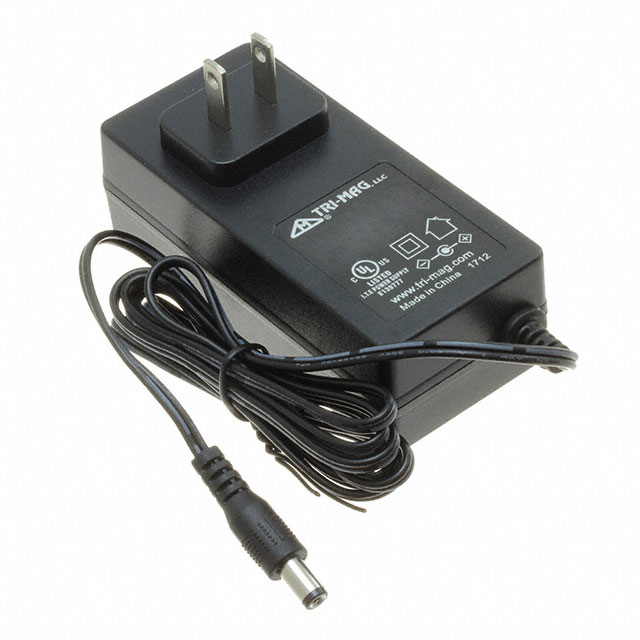

Tri-Mag, LLC L6R48-360			North America	Wall Mount	36 V	1.33 A	3.82 in		1.77 in	97 mm	1.52 in		Fixed Blade	100 mW	48 W	cUL FCC UL	ITE (Commercial)	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	NEMA 1-15P	40 °C	264 VAC	90 VAC	Level VI	60950-1		1.5 m	59 in	45 mm	38.6 mm
Tri-Mag, LLC L6R48D-090-C6	0.617 lb	280 g	International	Desktop (Class I)	9 V		4.72 "	34 mm	2.01 "	120 mm	1.34 "	51 mm	Cord (Sold Separately)	100 mW	45 W	cUL FCC UL	ITE (Commercial)	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	IEC 320-C6	40 °C	264 VAC	90 VAC	Level VI	60950-1	1 m	39.4 in				5 A
Tri-Mag, LLC L6R48D-300-C14	0.617 lb	280 g	International	Desktop (Class I)	30 V	1.6 A	4.72 "	34 mm	2.01 "	120 mm	1.34 "	51 mm	Cord (Sold Separately)	100 mW	48 W	cUL FCC UL	ITE (Commercial)	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	IEC 320-C14	40 °C	264 VAC	90 VAC	Level VI	60950-1	1 m	39.4 in
Tri-Mag, LLC L6R48D-240-200-C6	0.617 lb	280 g	International	Desktop (Class I)	24 V	2 A	4.72 "	34 mm	2.01 "	120 mm	1.34 "	51 mm	Cord (Sold Separately)	100 mW	48 W	cUL FCC UL	ITE (Commercial)	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	IEC 320-C6	40 °C	264 VAC	90 VAC	Level VI	60950-1	1 m	39.4 in
Tri-Mag, LLC L6R48D-300-C8	0.617 lb	280 g	International	Desktop (Class II)	30 V	1.6 A	4.72 "	34 mm	2.01 "	120 mm	1.34 "	51 mm	Cord (Sold Separately)	100 mW	48 W	cUL FCC UL	ITE (Commercial)	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	IEC 320-C8	40 °C	264 VAC	90 VAC	Level VI	60950-1	1 m	39.4 in
Tri-Mag, LLC L6R48D-180-C14	0.617 lb	280 g	International	Desktop (Class I)	18 V	2.67 A	4.72 "	34 mm	2.01 "	120 mm	1.34 "	51 mm	Cord (Sold Separately)	100 mW	48 W	cUL FCC UL	ITE (Commercial)	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	IEC 320-C14	40 °C	264 VAC	90 VAC	Level VI	60950-1	1 m	39.4 in
Tri-Mag, LLC L6R48D-090-500-C14	0.617 lb	280 g	International	Desktop (Class I)	9 V		4.72 "	34 mm	2.01 "	120 mm	1.34 "	51 mm	Cord (Sold Separately)	100 mW	45 W	cUL FCC UL	ITE (Commercial)	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	IEC 320-C14	40 °C	264 VAC	90 VAC	Level VI	60950-1	1 m	39.4 in				5 A
Tri-Mag, LLC L6R48D-300-C6	0.617 lb	280 g	International	Desktop (Class I)	30 V	1.6 A	4.72 "	34 mm	2.01 "	120 mm	1.34 "	51 mm	Cord (Sold Separately)	100 mW	48 W	cUL FCC UL	ITE (Commercial)	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	IEC 320-C6	40 °C	264 VAC	90 VAC	Level VI	60950-1	1 m	39.4 in
