BD6046GUL Series

Negative Voltage Protection Type

Catalog

Negative Voltage Protection Type

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Package / Case	Current - Supply	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Applications

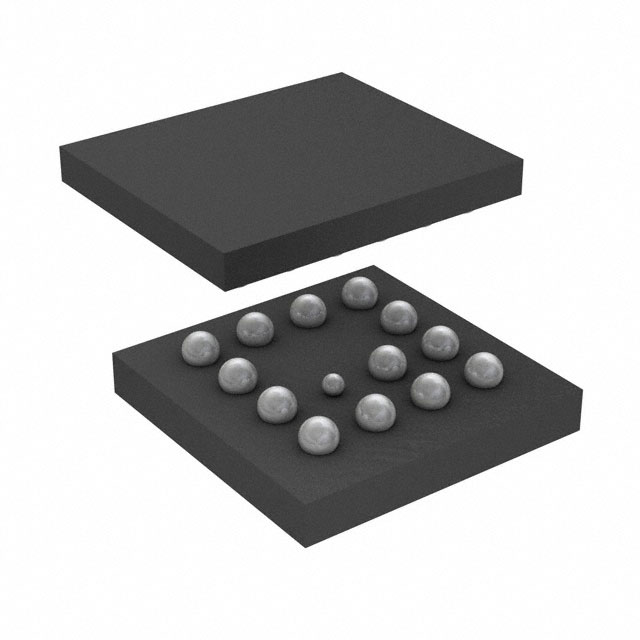

Rohm Semiconductor BD6046GUL-E2	28 V	2.2 V	Surface Mount	13-UFBGA CSPBGA	35 µA	85 °C	-40 °C	13-VCSP50L2 (2.5x2.5)	USB Overvoltage Protection Controller

Catalog

Negative Voltage Protection Type

Description

BD6046GUL protects the devices from the abnormal input voltage at the USB port.Addition to the conventional charge protection IC, it prevents the negative voltage happened by the USB reverse insertion without any additional components.ROHM's original charge protection IC series enables to protect the abnormal input voltage from -30V to +30V.
