5082-76 Series

Catalog

7 SEGMENT LED DISPLAY, RED, 20 MA, 2.1 V, 1.115 MCD, 1, 10.9 MM

Part	Number of Characters	Power Dissipation (Max)	Digit/Alpha Size	Package Length	Package Name	Package Features	Package Width	Wavelength - Peak	Display Type	Color	Current - Test	Common Pin	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Size / Dimension Width	Size / Dimension Depth	Size / Dimension Height	Number of Characters Tolerance

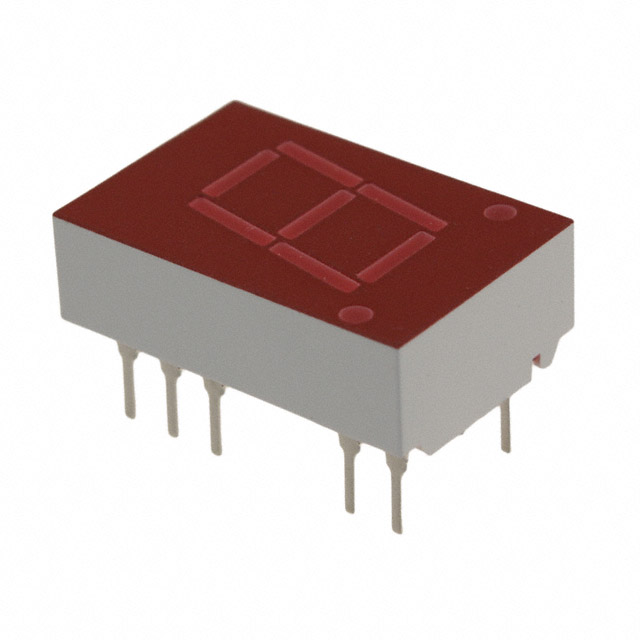

Broadcom Limited 5082-7650	1	105 mW	0.43 in	0.3 in	14-DIP	11 Leads	7.62 mm	635 nm	7-Segment	Red	20 mA	Common Anode	1.12 mcd	2.1 V	0.5 in	0.25 in	0.75 in

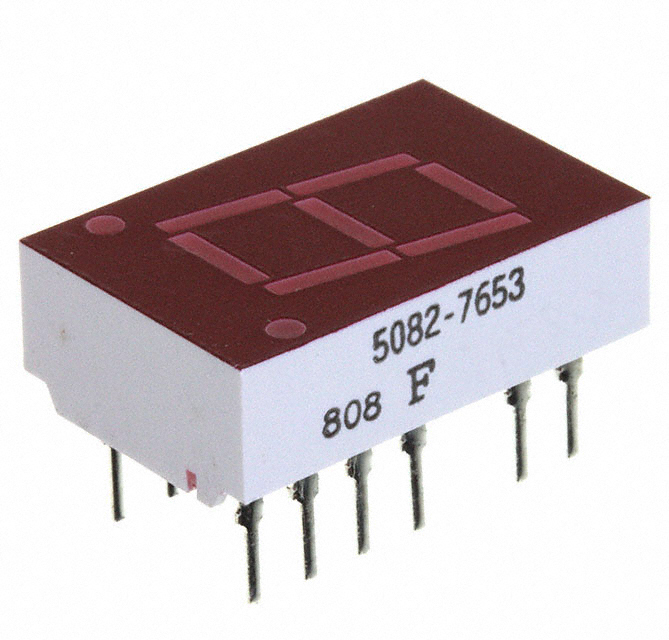

Broadcom Limited 5082-7653-DD000	1	105 mW	0.43 in	0.3 in	14-DIP	11 Leads	7.62 mm	635 nm	7-Segment	Red	20 mA	Common Cathode	1.12 mcd	2.1 V	0.5 in	0.25 in	0.75 in
Broadcom Limited 5082-7616		105 mW	0.3 in	0.3 in	14-DIP	12 Leads	7.62 mm	635 nm	7-Segment	Red	20 mA	Universal	0.8 mcd	2.1 V	0.4 in	0.18 in	0.75 in	1
Broadcom Limited 5082-7610-CD000	1	105 mW	0.3 in	0.3 in	14-DIP	11 Leads	7.62 mm	635 nm	7-Segment	Red	20 mA	Common Anode	0.8 mcd	2.1 V	0.4 in	0.18 in	0.75 in
Broadcom Limited 5082-7663	1	80 mW	0.43 in	0.3 in	14-DIP	11 Leads	7.62 mm	583 nm	7-Segment	Yellow	20 mA	Common Cathode	0.84 mcd	2.2 V	0.5 in	0.25 in	0.75 in
Broadcom Limited 5082-7611-DE000	1	105 mW	0.3 in	0.3 in	14-DIP	11 Leads	7.62 mm	635 nm	7-Segment	Red	20 mA	Common Anode	0.8 mcd	2.1 V	0.4 in	0.18 in	0.75 in
Broadcom Limited 5082-7620	1	80 mW	0.3 in	0.3 in	14-DIP	11 Leads	7.62 mm	583 nm	7-Segment	Yellow	20 mA	Common Anode	0.62 mcd	2.2 V	0.4 in	0.18 in	0.75 in

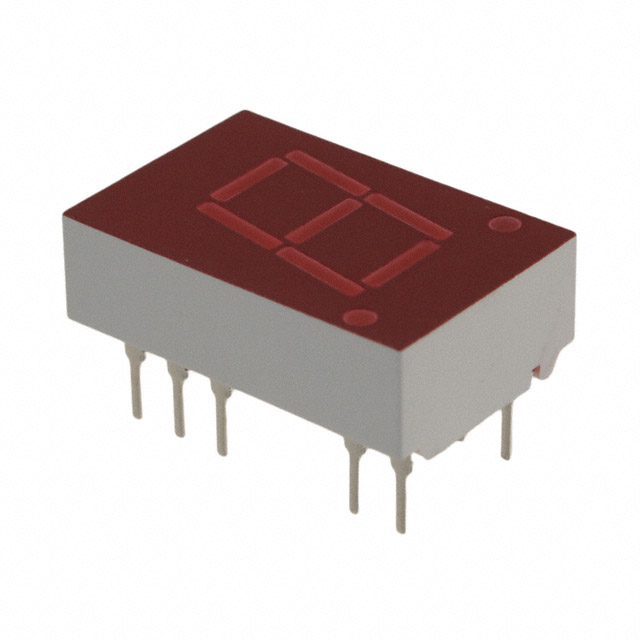

Broadcom Limited 5082-7651	1	105 mW	0.43 in	0.3 in	14-DIP	11 Leads	7.62 mm	635 nm	7-Segment	Red	20 mA	Common Anode	1.12 mcd	2.1 V	0.5 in	0.25 in	0.75 in
Broadcom Limited 5082-7651-DE000	1	105 mW	0.43 in	0.3 in	14-DIP	11 Leads	7.62 mm	635 nm	7-Segment	Red	20 mA	Common Anode	1.12 mcd	2.1 V	0.5 in	0.25 in	0.75 in
Broadcom Limited 5082-7653	1	105 mW	0.43 in	0.3 in	14-DIP	11 Leads	7.62 mm	635 nm	7-Segment	Red	20 mA	Common Cathode	1.12 mcd	2.1 V	0.5 in	0.25 in	0.75 in
