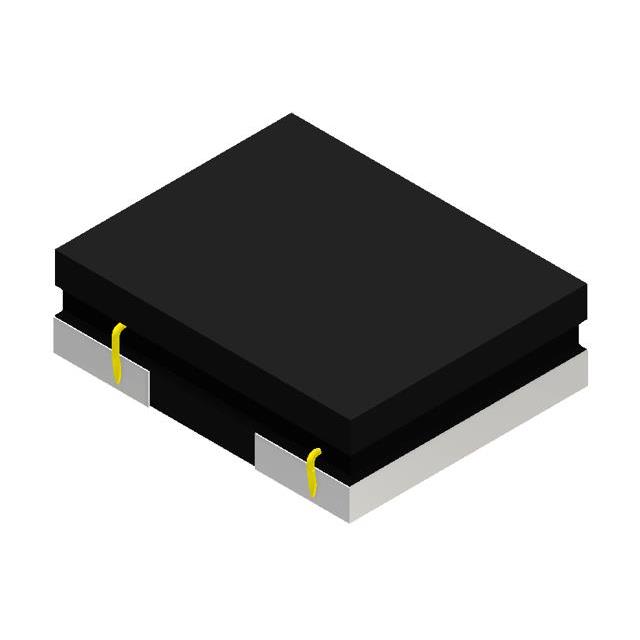

HPC 252012BMV Series
Manufacturer: TAI-TECH Advanced Electronics Co., Ltd.
Beta
⌘K
FIXED IND 1UH 3.3A 0.06OHM SMD
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Shielding | Current Rating (Amps) | Type | Ratings | Inductance | Tolerance | Material - Core | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Package / Case | Package / Case | Supplier Device Package | Inductance Frequency - Test | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Current - Saturation (Isat) | DC Resistance (DCR) [Max] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TAI-TECH Advanced Electronics Co., Ltd. | 2.5 mm | 0.079 in | 0.098 in | 2 mm | Shielded | 3.3 A | Wirewound | AEC-Q200 | 1 µH | 20 % | Ferrite | 1.2 mm | 0.047 " | 2520 Metric | 1008 | 252012 | 100 kHz | -55 C | 125 °C | Surface Mount | 2.8 A | ||
TAI-TECH Advanced Electronics Co., Ltd. | 2.5 mm | 0.079 in | 0.098 in | 2 mm | Shielded | 1.6 A | Wirewound | AEC-Q200 | 4.7 ÁH | 20 % | Ferrite | 1.2 mm | 0.047 " | 2520 Metric | 1008 | 252012 | 100 kHz | -55 C | 125 °C | Surface Mount | 1.3 A | 270 mOhm | |
TAI-TECH Advanced Electronics Co., Ltd. | 2.5 mm | 0.079 in | 0.098 in | 2 mm | Shielded | 1.1 A | Wirewound | AEC-Q200 | 10 µH | 20 % | Ferrite | 1.2 mm | 0.047 " | 2520 Metric | 1008 | 252012 | 100 kHz | -55 C | 125 °C | Surface Mount | 900 mA | 594 mOhm | |
TAI-TECH Advanced Electronics Co., Ltd. | 2.5 mm | 0.079 in | 0.098 in | 2 mm | Shielded | 2.3 A | Wirewound | AEC-Q200 | 2.2 µH | 20 % | Ferrite | 1.2 mm | 0.047 " | 2520 Metric | 1008 | 252012 | 100 kHz | -55 C | 125 °C | Surface Mount | 1.9 A | 113 mOhm |
