HLMP14 Series

Catalog

LED YELLOW DIFFUSED T-1 T/H

Part	Current - Test	Configuration	Supplier Device Package	Lens Size	Lens Size	Color	Millicandela Rating	Lens Color	Viewing Angle	Lens Transparency	Lens Style	Package / Case	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]	Mounting Type	Size / Dimension [diameter]
ON Semiconductor HLMP1485	10 mA	Standard	T-1	3 mm	T-1	Yellow	10 mcd	Yellow	70 °	Diffused	Round with Domed Top	Radial	585 nm	2.1 V	6.35 mm	Through Hole
ON Semiconductor HLMP1420	10 mA	Standard	T-1	3 mm	T-1	Yellow	12 mcd	Yellow	45 °	Clear	Round with Domed Top	Radial	585 nm	2.1 V	6.3 mm	Through Hole
ON Semiconductor HLMP1485			T-1	3 mm	T-1	Yellow	10 mcd	Yellow	70 °	Diffused	Round with Domed Top	Radial	585 nm	2.1 V	4.8 mm	Through Hole	3.18 mm

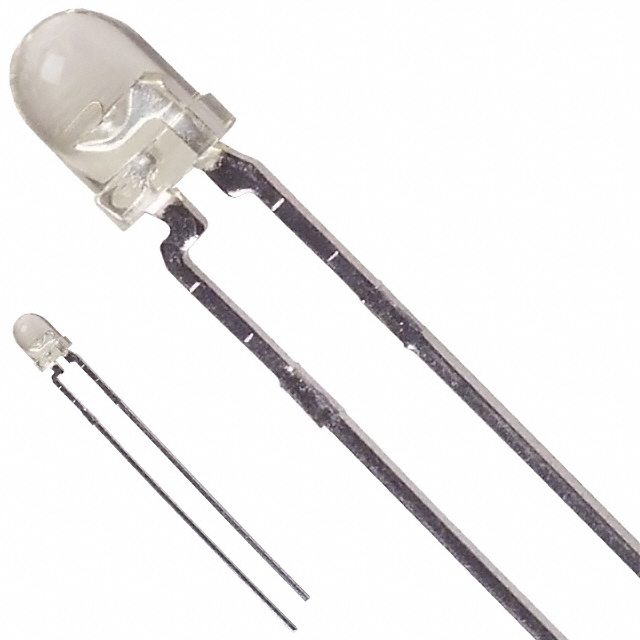

ON Semiconductor HLMP1440	10 mA	Standard	T-1	3 mm	T-1	Yellow	60 mcd	Yellow	45 °	Clear	Round with Domed Top	Radial	585 nm	2.2 V	6.3 mm	Through Hole
