6609929 Series

Manufacturer: TE Connectivity Corcom Filters

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Current Rating - Appliance Inlet	Mounting Type	Approval Agency	Voltage Rating - Appliance Inlet	Current Rating - Filter	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Fuse Holder, Drawer	Filter Type	Connector Type	Connector Style	Features	Termination	Termination	Termination	Switch Features	Panel Cutout Dimensions
TE Connectivity Corcom Filters 7-6609929-5	10 A	Flange Panel Mount	CSA UL VDE	120 VAC	10 A	0.79 mm	2.9 mm	0.031 "	0.114 in	Twin Fused	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades - Module	IEC 320-C14	Voltage Selector	Quick Connect	0.187 "	4.7 mm
TE Connectivity Corcom Filters 3-6609929-8	6 A	Flange Panel Mount	CSA UL VDE	120 VAC	6 A	0.79 mm	2.9 mm	0.031 "	0.114 in	Fuse Holder	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	IEC 320-C14	Conversion Clip Shielded Voltage Selector	Quick Connect	0.187 "	4.7 mm	Switch On-Off	Variable Size
TE Connectivity Corcom Filters 3-6609929-1	6 A	Flange Panel Mount	CSA UL VDE	120 VAC	6 A	0.79 mm	2.9 mm	0.031 "	0.114 in	Fuse Holder	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades - Module	IEC 320-C14	Conversion Clip Voltage Selector	Quick Connect	0.187 "	4.7 mm	Switch On-Off	Variable Size
TE Connectivity Corcom Filters 1-6609929-7	10 A	Flange Panel Mount	CSA UL VDE	120 VAC	10 A	0.79 mm	2.9 mm	0.031 "	0.114 in	Twin Fused	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	IEC 320-C14	Voltage Selector	Quick Connect	0.187 "	4.7 mm	Switch On-Off	Variable Size
TE Connectivity Corcom Filters 2-6609929-2	6 A	Flange Panel Mount	CSA UL VDE	120 VAC	6 A	0.79 mm	2.9 mm	0.031 "	0.114 in	Twin Fused	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	IEC 320-C14	Voltage Selector	Quick Connect	0.187 "	4.7 mm	Switch On-Off	Variable Size

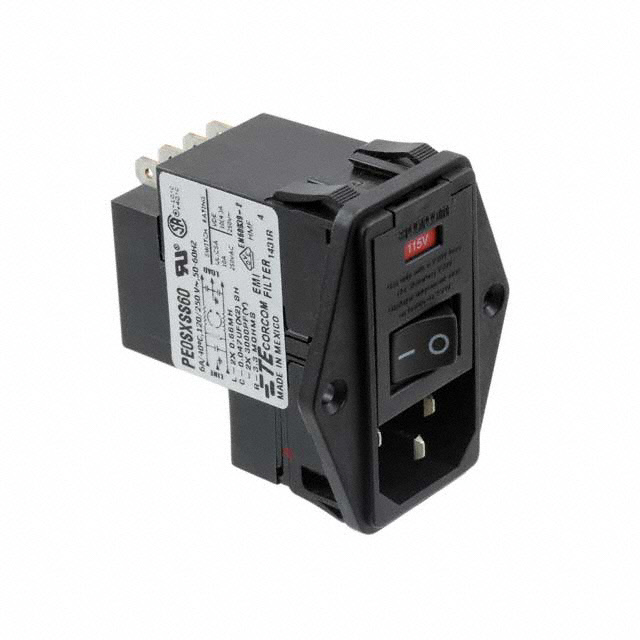

TE Connectivity Corcom Filters 4-6609929-0	6 A	Flange Panel Mount	CSA UL VDE	120 VAC	6 A	0.79 mm	2.9 mm	0.031 "	0.114 in	Fuse Holder	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	IEC 320-C14	Conversion Clip Voltage Selector	Quick Connect	0.187 "	4.7 mm	Switch On-Off	Variable Size
TE Connectivity Corcom Filters 1-6609929-8	3 A	Flange Panel Mount	CSA UL VDE	120 VAC	3 A	0.79 mm	2.9 mm	0.031 "	0.114 in	Twin Fused	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	IEC 320-C14	Shielded Voltage Selector	Quick Connect	0.187 "	4.7 mm	Switch On-Off	Variable Size
TE Connectivity Corcom Filters 6-6609929-0	3 A	Flange Panel Mount	CSA UL VDE	120 VAC	3 A	0.79 mm	2.9 mm	0.031 "	0.114 in	Fuse Holder	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades - Module	IEC 320-C14	Conversion Clip Shielded	Quick Connect	0.187 "	4.7 mm	Switch On-Off	Variable Size

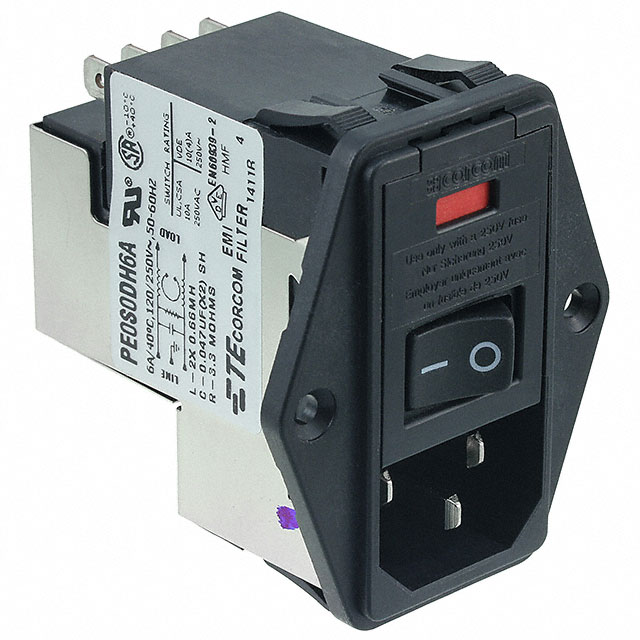

TE Connectivity Corcom Filters 4-6609929-8	6 A	Flange Panel Mount	CSA UL VDE	120 VAC	6 A	0.79 mm	2.9 mm	0.031 "	0.114 in	Twin Fused	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades - Module	IEC 320-C14	Shielded	Quick Connect	0.187 "	4.7 mm	Switch On-Off	Variable Size
TE Connectivity Corcom Filters 9-6609929-4	6 A	Flange Panel Mount	CSA UL VDE	120 VAC	6 A	0.79 mm	2.9 mm	0.031 "	0.114 in	Twin Fused	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	IEC 320-C14	Voltage Selector	Quick Connect	0.187 "	4.7 mm
