H16B Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

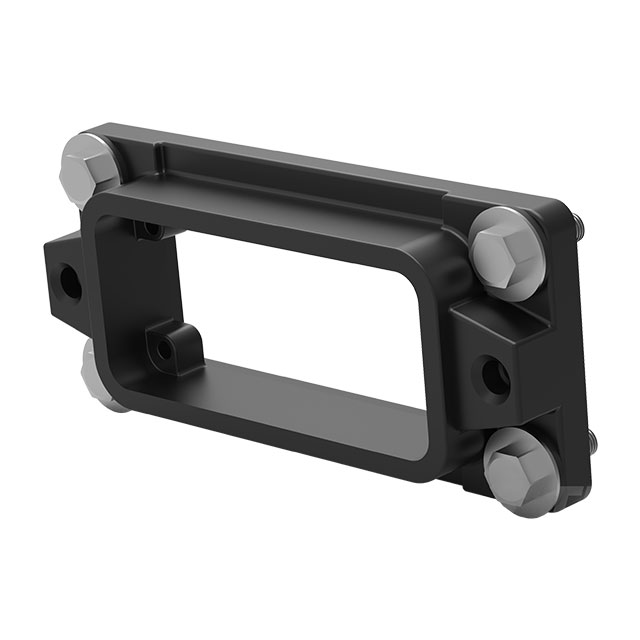

CONN BASE BOTTOM SZH16B
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Size | Housing Material | Housing Color | Ingress Protection | Features | Style | Connector Type | Lock Location | Housing Finish | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Specifications | Accessory Type | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | 125 °C | -40 °C | H16B | Aluminum Alloy Die Cast | Black | IP68 - Dust Tight Waterproof | Corrosion Resistant EMC Resistant | Bottom Entry | Base - Panel Mount | Screw Locks on Hood | Powder Coated | 21.9 mm | 2.362 in | 129.5 mm | 60 mm | 5.098 in | 0.862 " | |||

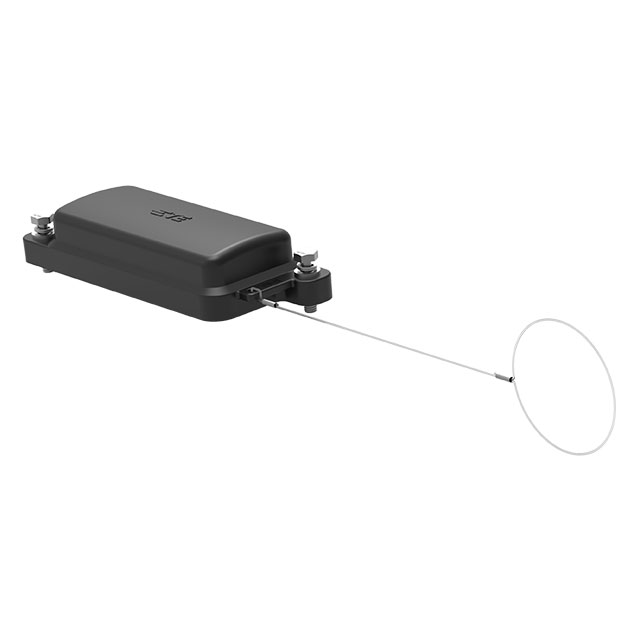

 TE Connectivity Aerospace, Defense and Marine | Screw Locks Size H16B | Cover with Retaining Cord | HBPR Housings |
