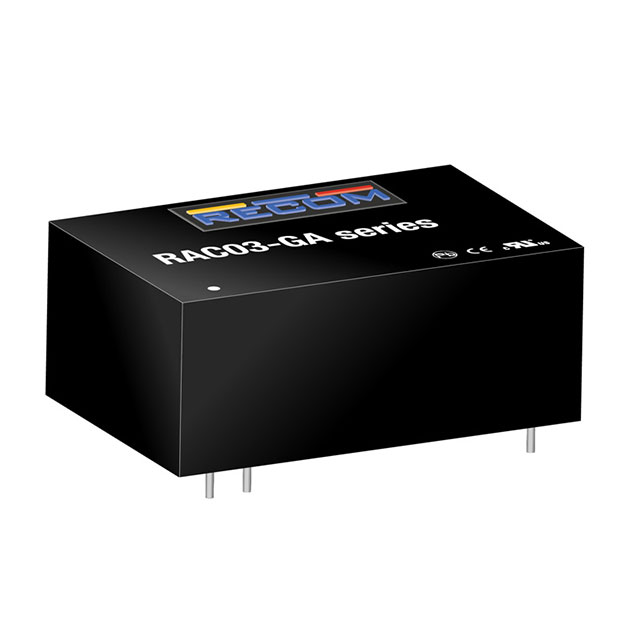

RAC03-GA Series

Catalog

AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE & HOUSEHOLD, 1 OUTPUT, 3 W, 12 V, 250 MA

Part	Mounting Type	Voltage - Output 1	Current - Output (Max) [Max]	Package / Case	Efficiency	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Type	Power (Watts)	Applications	Approval Agency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input [Max]	Voltage - Input [Min]	Load Regulation	Weight [custom]	Weight [custom]	Line Regulation
Recom Power RAC03-12SGA	Through Hole	12 V	250 mA	16-DIP Module 5 Leads	78 %	1	-40 °C	85 °C	Enclosed	3 W	Household Appliances ITE (Commercial)	CE cURus	24 mm	0.59 in	37 mm	0.94 in	1.46 in	15 mm	305 VAC	85 VAC
Recom Power RAC03-15SGA	Through Hole	15 V	200 mA	16-DIP Module 5 Leads	78 %	1	-40 °C	85 °C	Enclosed	3 W	Household Appliances ITE (Commercial)	CE cURus	24 mm	0.59 in	37 mm	0.94 in	1.46 in	15 mm	305 VAC	85 VAC	0.5 %	0.044 lb	19.96 g	0.5 %
Recom Power RAC03-05SGA	Through Hole	5 V	600 mA	16-DIP Module 5 Leads	72 %	1	-40 °C	85 °C	Enclosed	3 W	Household Appliances ITE (Commercial)	CE cURus	24 mm	0.59 in	37 mm	0.94 in	1.46 in	15 mm	305 VAC	85 VAC	0.5 %	0.044 lb	19.96 g	0.5 %
Recom Power RAC03-24SGA	Through Hole	24 V	130 mA	16-DIP Module 5 Leads	80 %	1	-40 °C	85 °C	Enclosed	3 W	Household Appliances ITE (Commercial)	CE cURus	24 mm	0.59 in	37 mm	0.94 in	1.46 in	15 mm	305 VAC	85 VAC	0.5 %	0.044 lb	19.96 g	0.5 %
