1217001 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

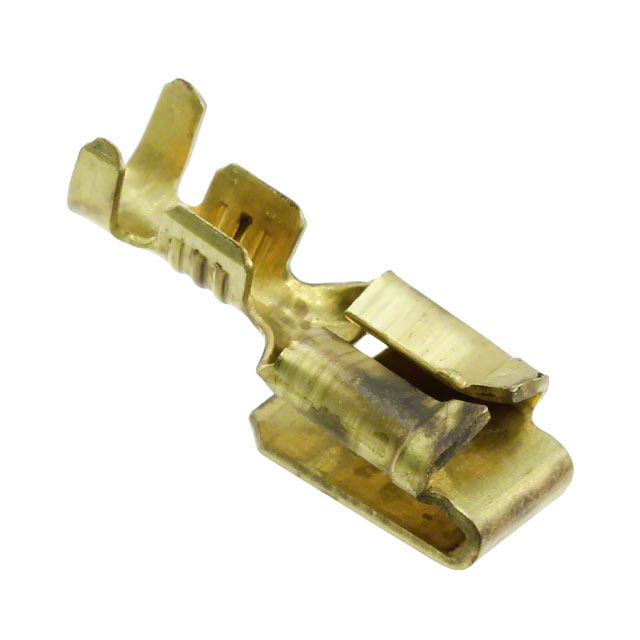

CONN QC RCPT/TAB 16-20AWG 0.187
| Part | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation | Length - Overall [x] | Length - Overall [x] | Tab Thickness | Tab Thickness | Terminal Type | Mounting Type | Gender | Tab Width [x] | Tab Width [x] | Wire Gauge [Max] | Wire Gauge [Min] | Termination | Tab Length | Tab Length | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.13 in | 0.083 in | 2.11 mm | 3.3 mm | Non-Insulated | 15.62 mm | 0.615 in | 0.51 mm 0.81 mm | 0.02 " 0.032 " | Stacked | Free Hanging (In-Line) | Female Male | 0.187 in | 4.75 mm | 20 AWG | 16 AWG | Crimp | 5.72 mm | 0.225 in | Brass |
