TC124-FR Series

Manufacturer: YAGEO

Catalog

Catalog

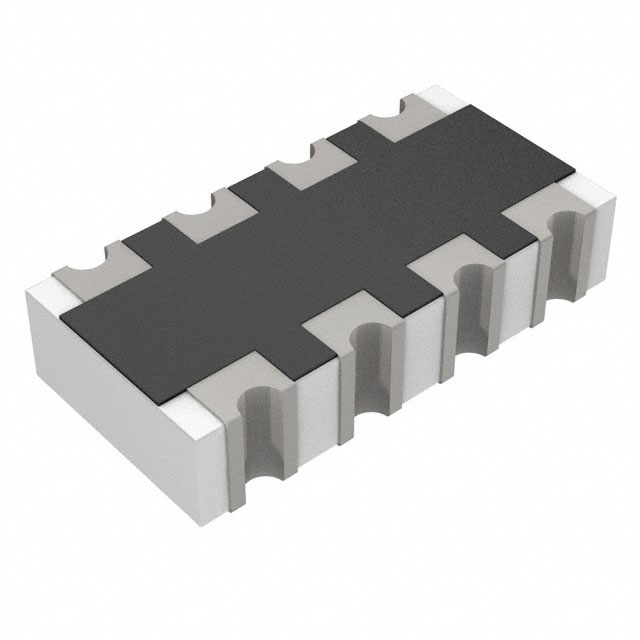

RES ARRAY 4 RES 53.6 OHM 0804

...

Part	Applications	Circuit Type	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Resistance (Ohms)	Qualification	Height - Seated (Max) [Max]	Height - Seated (Max)	Grade	Temperature Coefficient	Number of Resistors	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Power Per Element	Package / Case	Number of Pins	Mounting Type	Resistance (Ohms) [custom]	Resistance (Ohms)
YAGEO TC124-FR-0753R6L	DDRAM SDRAM	Isolated	-55 C	125 °C	1 %	53.6 Ohms	AEC-Q200	0.02 in	0.5 mm	Automotive	200 ppm/°C	4	0.039 in	1 mm	0.079 in	2 mm	62.5 mW	0804 Concave Long Side Terminals	8	Surface Mount
YAGEO TC124-FR-07316RL	DDRAM SDRAM	Isolated	-55 C	125 °C	1 %		AEC-Q200	0.02 in	0.5 mm	Automotive	200 ppm/°C	4	0.039 in	1 mm	0.079 in	2 mm	62.5 mW	0804 Concave Long Side Terminals	8	Surface Mount	316 Ohms
YAGEO TC124-FR-0793K1L	DDRAM SDRAM	Isolated	-55 C	125 °C	1 %		AEC-Q200	0.02 in	0.5 mm	Automotive	200 ppm/°C	4	0.039 in	1 mm	0.079 in	2 mm	62.5 mW	0804 Concave Long Side Terminals	8	Surface Mount	93.1 kOhms
YAGEO TC124-FR-07340KL	DDRAM SDRAM	Isolated	-55 C	125 °C	1 %		AEC-Q200	0.02 in	0.5 mm	Automotive	200 ppm/°C	4	0.039 in	1 mm	0.079 in	2 mm	62.5 mW	0804 Concave Long Side Terminals	8	Surface Mount		340k
YAGEO TC124-FR-07910KL	DDRAM SDRAM	Isolated	-55 C	125 °C	1 %		AEC-Q200	0.02 in	0.5 mm	Automotive	200 ppm/°C	4	0.039 in	1 mm	0.079 in	2 mm	62.5 mW	0804 Concave Long Side Terminals	8	Surface Mount		910k
YAGEO TC124-FR-076K49L	DDRAM SDRAM	Isolated	-55 C	125 °C	1 %		AEC-Q200	0.02 in	0.5 mm	Automotive	200 ppm/°C	4	0.039 in	1 mm	0.079 in	2 mm	62.5 mW	0804 Concave Long Side Terminals	8	Surface Mount		6.49k
YAGEO TC124-FR-07237KL	DDRAM SDRAM	Isolated	-55 C	125 °C	1 %	237 kOhms	AEC-Q200	0.02 in	0.5 mm	Automotive	200 ppm/°C	4	0.039 in	1 mm	0.079 in	2 mm	62.5 mW	0804 Concave Long Side Terminals	8	Surface Mount
YAGEO TC124-FR-076K04L	DDRAM SDRAM	Isolated	-55 C	125 °C	1 %	6.04 kOhms	AEC-Q200	0.02 in	0.5 mm	Automotive	200 ppm/°C	4	0.039 in	1 mm	0.079 in	2 mm	62.5 mW	0804 Concave Long Side Terminals	8	Surface Mount
YAGEO TC124-FR-07422KL	DDRAM SDRAM	Isolated	-55 C	125 °C	1 %		AEC-Q200	0.02 in	0.5 mm	Automotive	200 ppm/°C	4	0.039 in	1 mm	0.079 in	2 mm	62.5 mW	0804 Concave Long Side Terminals	8	Surface Mount	422 kOhms
YAGEO TC124-FR-07255RL	DDRAM SDRAM	Isolated	-55 C	125 °C	1 %		AEC-Q200	0.02 in	0.5 mm	Automotive	200 ppm/°C	4	0.039 in	1 mm	0.079 in	2 mm	62.5 mW	0804 Concave Long Side Terminals	8	Surface Mount	255 Ohms
