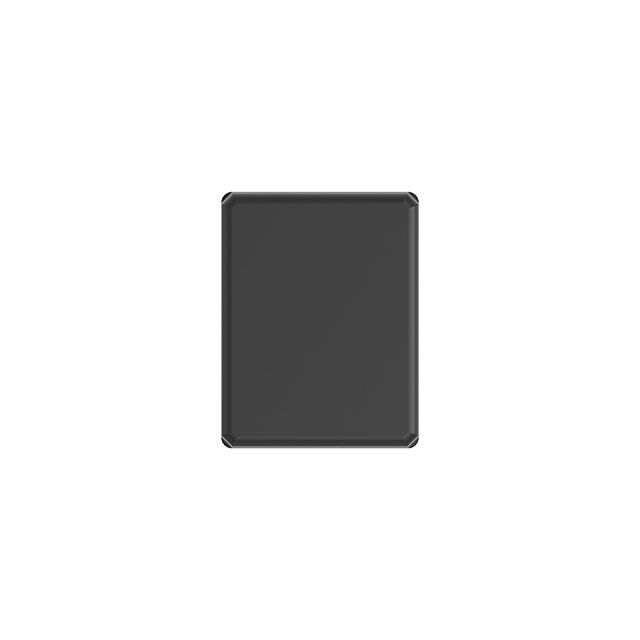

R10-E1W2 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY DPDT 7.5A 24V
| Part | Coil Resistance | Relay Type | Switching Voltage | Termination Style | Contact Form | Must Operate Voltage | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Coil Current | Contact Rating (Current) | Coil Type | Mounting Type | Approval Agency | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.2 kOhms | General Purpose | 120 VAC | Plug In | DPDT (2 Form C) | 18 VDC | Silver Cadmium Oxide (AgCdO) | -55 C | 75 ░C | 7.5 mA | 7.5 A | Non Latching | Socketable | CSA UR | 24 VDC |
 TE Connectivity AMP Connectors | 15 kOhms | General Purpose | 120 VAC | Plug In | DPDT (2 Form C) | 86 VDC | Silver Cadmium Oxide (AgCdO) | -55 C | 75 ░C | 7.7 mA | 7.5 A | Non Latching | Socketable | CSA UR | 115 VDC |
TE Connectivity AMP Connectors | 140 Ohms | General Purpose | 120 VAC | Plug In | DPDT (2 Form C) | 3.75 VDC | Silver Cadmium Oxide (AgCdO) | -55 C | 75 ░C | 35.7 mA | 7.5 A | Non Latching | Socketable | CSA UR | 5 VDC |
 TE Connectivity AMP Connectors | 700 Ohms | General Purpose | 120 VAC | Plug In | DPDT (2 Form C) | 18 VDC | Silver Cadmium Oxide (AgCdO) | -55 C | 75 ░C | 34.3 mA | 7.5 A | Non Latching | Socketable | CSA UR | 24 VDC |
TE Connectivity AMP Connectors | 52 Ohms | General Purpose | 120 VAC | Plug In | DPDT (2 Form C) | 4.5 VDC | Silver Cadmium Oxide (AgCdO) | -55 C | 75 ░C | 115 mA | 7.5 A | Non Latching | Socketable | CSA UR |
