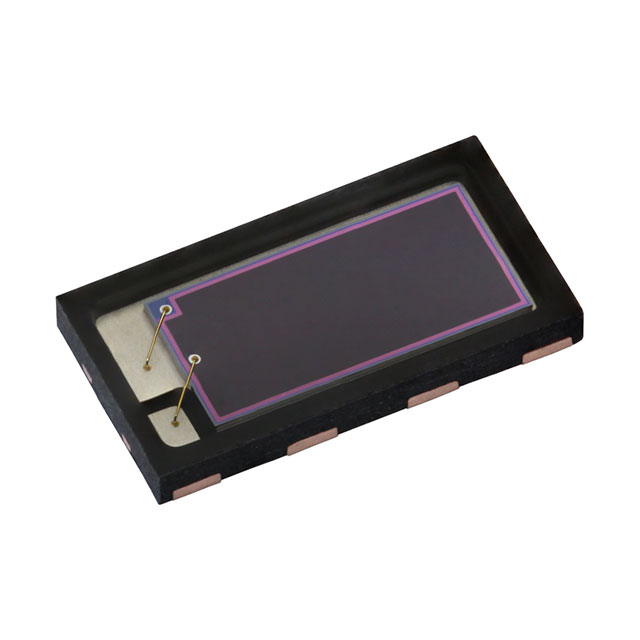

VEMD8081 Series
Manufacturer: Vishay Semiconductor Opto Division
Beta
⌘K
SENSOR PHOTODIODE 840NM 8SMD
| Part | Package / Case | Voltage - DC Reverse (Vr) (Max) [Max] | Spectral Range [Max] | Spectral Range [Min] | Current - Dark (Typ) | Wavelength | Viewing Angle | Active Area | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Response Time | Diode Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Semiconductor Opto Division | 8-SMD No Lead | 20 V | 1100 nm | 350 nm | 500 pA | 840 nm | 130 ° | 5.4 mm² | Surface Mount | 85 °C | -40 C | 110 ns | PIN |
