35605 Series

Catalog

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 3 MM, 1 ROWS, 5 CONTACTS, THROUGH HOLE

Part	Contact Finish Thickness - Post	Insulation Material	Voltage Rating	Style	Features	Number of Positions Loaded	Contact Type	Termination	Contact Material	Number of Positions	Contact Shape	Contact Finish - Post	Mounting Type	Number of Rows	Material Flammability Rating	Shrouding	Connector Type	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Length - Post [custom]	Contact Length - Post	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type
3M Electronic Specialty 35605-5153-AP0PE	Flash	Polybutylene Terephthalate (PBT)	250 V	Board to Cable/Wire	Board Guide Board Lock	All	Male Blade	Solder	Copper Alloy	5	Rectangular	Gold	Right Angle Through Hole	1	UL94 V-0	Shrouded - 4 Wall	Header	Gold	3 mm	0.118 in	Black	0.11 in	2.79 mm	9.3 mm	0.366 "	0.51 µm	20 µin	Latch Holder
3M Electronic Specialty 35605-6114-B00PE	Flash	Polybutylene Terephthalate (PBT)	250 V	Board to Cable/Wire	Board Guide Board Lock	All	Male Blade	Solder	Copper Alloy	5	Rectangular	Gold	Through Hole	1	UL94 V-0	Shrouded - 4 Wall	Header	Gold	3 mm	0.118 in	Black	0.11 in	2.79 mm	16.5 mm	0.65 in	0.51 µm	20 µin	Latch Holder

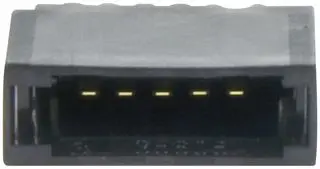

3M Electronic Specialty 35605-6114-A00PE	Flash	Polybutylene Terephthalate (PBT)	250 V	Board to Cable/Wire	Board Guide Board Lock	All	Male Blade	Solder	Copper Alloy	5	Rectangular	Gold	Through Hole	1	UL94 V-0	Shrouded - 4 Wall	Header	Gold	3 mm	0.118 in	Black	0.11 in	2.79 mm	16.5 mm	0.65 in	0.51 µm	20 µin	Latch Holder
