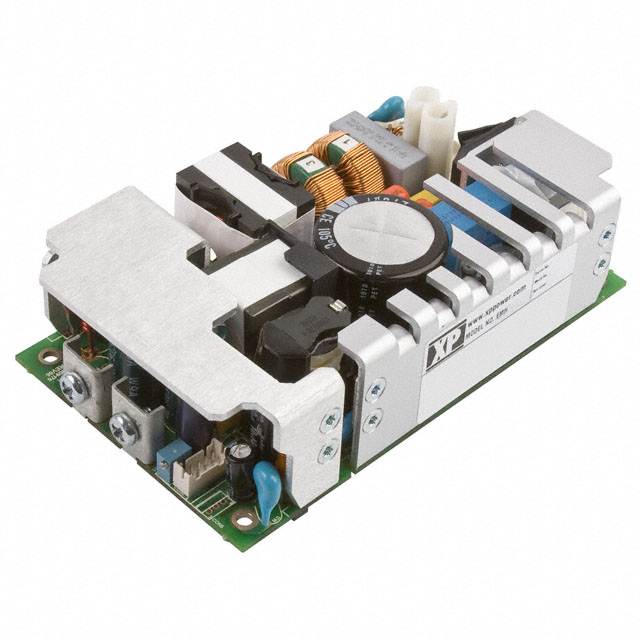

EMH350 Series

Manufacturer: XP Power

Catalog

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE & MEDICAL, 2 OUTPUT, 354W @ 16CFM, 80V AC TO 275V AC

Part	Mounting Type	Approval Agency	Voltage - Output 1	Voltage - Isolation	Features	Type	Power (Watts)	Efficiency	Current - Output 2	Standard Number	Applications	Number of Outputs	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 2	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]

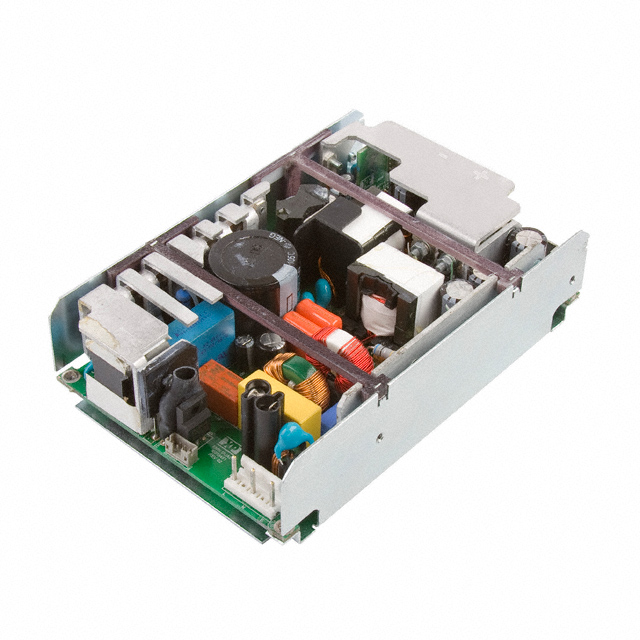

XP Power EMH350PD22-U	Chassis Mount	CB CE TUV UL	12 V	4000 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	Open Frame	350 W	87 %	5.5 A	62368-1	ITE (Commercial) Medical	2	16.5 A	80 VAC	275 VAC	36 V	6 "	1.57 "	152.4 mm	101.6 mm	4 "	39.8 mm	70 °C
XP Power EMH350PD23-EF	Chassis Mount	CB CE TUV UL	12 V	4000 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	Enclosed	350 W	87 %	4.2 A	62368-1	ITE (Commercial) Medical	2	16.5 A	80 VAC	275 VAC	48 V	7 "	1.75 in	177.8 mm	101.6 mm	4 "	44.5 mm	70 °C
XP Power EMH350PS18	Chassis Mount	CB CE TUV UL	18 V	4000 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	Open Frame	350 W	87 %		62368-1	ITE (Commercial) Medical	1	19.5 A	80 VAC	275 VAC		5 "	1.43 in	127 mm	76.2 mm	3 "	36.3 mm	70 °C
XP Power EMH350PD22-EF	Chassis Mount	CB CE TUV UL	12 V	4000 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	Enclosed	350 W	87 %	5.5 A	62368-1	ITE (Commercial) Medical	2	16.5 A	80 VAC	275 VAC	36 V	7 "	1.75 in	177.8 mm	101.6 mm	4 "	44.5 mm	70 °C
XP Power EMH350PS24	Chassis Mount	CB CE TUV UL	24 V	4000 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	Open Frame	350 W	87 %		62368-1	ITE (Commercial) Medical	1	14.6 A	80 VAC	275 VAC		5 "	1.43 in	127 mm	76.2 mm	3 "	36.3 mm	70 °C
XP Power EMH350PS12-01	Chassis Mount	CB CE TUV UL	12 V	4000 V	Adjustable Output Load Sharing Remote On/Off Remote Sense Standby Output Universal Input	Open Frame	350 W	87 %		62368-1	ITE (Commercial) Medical	1	29.2 A	80 VAC	275 VAC		5 "	1.43 in	127 mm	76.2 mm	3 "	36.3 mm	70 °C

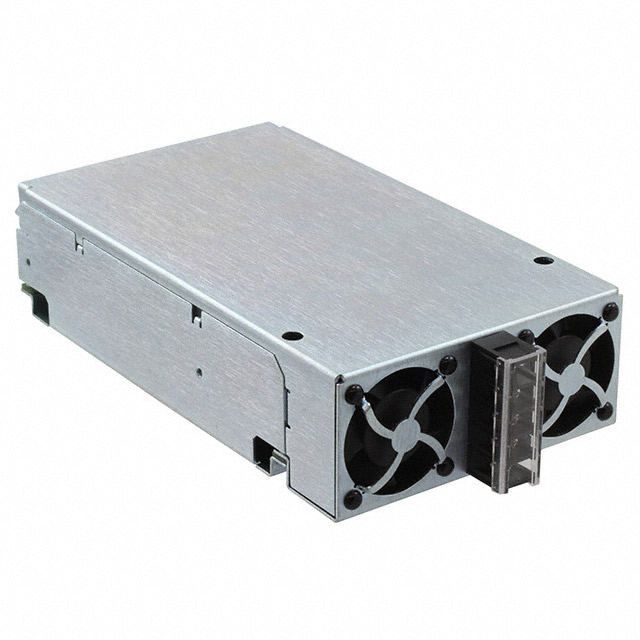

XP Power EMH350PD21-EF	Chassis Mount	CB CE TUV UL	12 V	4000 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	Enclosed	350 W	87 %	8.3 A	62368-1	ITE (Commercial) Medical	2	16.5 A	80 VAC	275 VAC	24 V	7 "	1.75 in	177.8 mm	101.6 mm	4 "	44.5 mm	70 °C
XP Power EMH350PS48	Chassis Mount	CB CE TUV UL	48 V	4000 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	Open Frame	350 W	87 %		62368-1	ITE (Commercial) Medical	1	7.3 A	80 VAC	275 VAC		5 "	1.43 in	127 mm	76.2 mm	3 "	36.3 mm	70 °C
XP Power EMH350PS12	Chassis Mount	CB CE TUV UL	12 V	4000 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	Open Frame	350 W	87 %		62368-1	ITE (Commercial) Medical	1	29.2 A	80 VAC	275 VAC		5 "	1.43 in	127 mm	76.2 mm	3 "	36.3 mm	70 °C
XP Power EMH350PS18-01	Chassis Mount	CB CE TUV UL	18 V	4000 V	Adjustable Output Load Sharing Remote On/Off Remote Sense Standby Output Universal Input	Open Frame	350 W	87 %		62368-1	ITE (Commercial) Medical	1	19.5 A	80 VAC	275 VAC		5 "	1.43 in	127 mm	76.2 mm	3 "	36.3 mm	70 °C
