SIC1182 Series

Catalog

MOSFET DRIVER, 4.75V-5.25V, ESOP-16 ROHS COMPLIANT: YES

Part	Current - Output High, Low	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Package / Case	Package / Case	Mounting Type	Current - Peak Output	Rise / Fall Time (Typ)	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Approval Agency	Number of Channels [custom]	Technology	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Common Mode Transient Immunity (Min)	Common Mode Transient Immunity (Min) [Min]

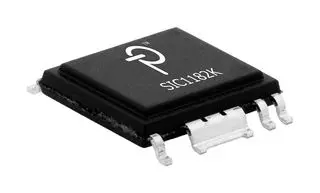

POWER INTEGRATIONS SIC1182K	7.3 A 7.8 A	325 ns	305 ns	16-PowerSOIC	0.35 in 8.89 mm Width 15 Leads	Surface Mount	8 A	447 ns 475 ns	18 V	28 V	UL	1	Magnetic Coupling	eSOP-R16B	125 °C	-40 C
POWER INTEGRATIONS SIC1182KQ-TL	7.3 A 7.8 A	325 ns	305 ns	16-PowerSOIC	0.35 in 8.89 mm Width 15 Leads	Surface Mount	8 A	447 ns 475 ns	18 V	28 V	CSA UL1577 VDE	1	Magnetic Coupling	eSOP-R16B	125 °C	-40 C	35 kV/µs
POWER INTEGRATIONS SIC1182K-TL	7.3 A 7.8 A	325 ns	305 ns	16-PowerSOIC	0.35 in 8.89 mm Width 15 Leads	Surface Mount	8 A	447 ns 475 ns	18 V	28 V	UL	1	Magnetic Coupling	eSOP-R16B	125 °C	-40 C		500 V/µs
POWER INTEGRATIONS SIC1182KQ	7.3 A 7.8 A	325 ns	305 ns	16-PowerSOIC	0.35 in 8.89 mm Width 15 Leads	Surface Mount	8 A	447 ns 475 ns	18 V	28 V	CSA UL1577 VDE	1	Magnetic Coupling	eSOP-R16B	125 °C	-40 C	35 kV/µs
