8553-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RECEPT PIN .015-.021" .229"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Contact Finish	Tail Type	Length - Overall [x]	Length - Overall [x]	Contact Material	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter	Mounting Hole Diameter	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]
Mill-Max Manufacturing Corp. 8553-0-15-01-21-14-10-0	-55 C	125 °C	5.82 mm	0.229 in	Gold	No Tail	0.245 in	6.22 mm	Beryllium Copper	Hex Press-Fit	1.4 mm	0.055 in	0.041 in	1.04 mm	0.25 Ám	10 Áin	0.031 in	0.79 mm	0.38 mm	0.022 in	0.015 "	0.56 mm
Mill-Max Manufacturing Corp. 8553-0-15-15-21-14-10-0	-55 C	125 °C	2.11 mm	0.083 in	Gold	No Tail	0.245 in	6.22 mm	Beryllium Copper	Hex Press-Fit	1.4 mm	0.055 in			0.25 Ám	10 Áin	0.031 in	0.79 mm	0.38 mm	0.022 in	0.015 "	0.56 mm

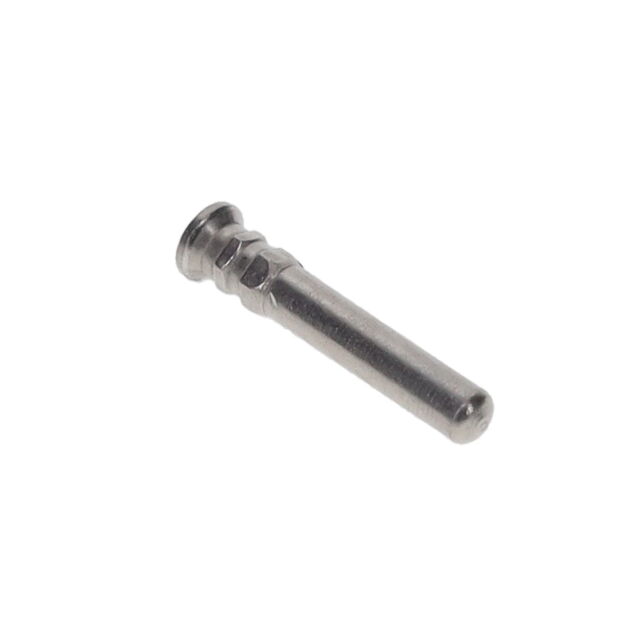

Mill-Max Manufacturing Corp. 8553-0-15-80-21-14-10-0	-55 C	125 °C	2.11 mm	0.083 in	Gold	No Tail	0.245 in	6.22 mm	Beryllium Copper	Hex Press-Fit	1.4 mm	0.055 in			0.25 Ám	10 Áin	0.031 in	0.79 mm	0.38 mm	0.022 in	0.015 "	0.56 mm
Mill-Max Manufacturing Corp. 8553-0-15-01-11-14-10-0	-55 C	125 °C	5.82 mm	0.229 in	Gold	No Tail	0.245 in	6.22 mm	Beryllium Copper	Hex Press-Fit	1.4 mm	0.055 in	0.041 in	1.04 mm	0.25 Ám	10 Áin	0.031 in	0.79 mm	0.38 mm	0.02 in	0.015 "		0.51 mm
Mill-Max Manufacturing Corp. 8553-0-15-80-11-14-10-0	-55 C	125 °C	2.11 mm	0.083 in	Gold	No Tail	0.245 in	6.22 mm	Beryllium Copper	Hex Press-Fit	1.4 mm	0.055 in			0.25 Ám	10 Áin	0.031 in	0.79 mm	0.38 mm	0.02 in	0.015 "		0.51 mm
Mill-Max Manufacturing Corp. 8553-0-15-01-21-27-10-0	-55 C	125 °C	5.82 mm	0.229 in	Gold	No Tail	0.245 in	6.22 mm	Beryllium Copper	Hex Press-Fit	1.4 mm	0.055 in	0.041 in	1.04 mm	0.76 Ám	30 Áin	0.031 in	0.79 mm	0.38 mm	0.022 in	0.015 "	0.56 mm
Mill-Max Manufacturing Corp. 8553-0-15-80-11-84-10-0	-55 C	125 °C	2.11 mm	0.083 in	Tin	No Tail	0.245 in	6.22 mm	Beryllium Copper	Hex Press-Fit	1.4 mm	0.055 in			2.54 µm	100 µin	0.031 in	0.79 mm	0.38 mm	0.02 in	0.015 "		0.51 mm
Mill-Max Manufacturing Corp. 8553-0-15-01-21-02-10-0	-55 C	125 °C	5.82 mm	0.229 in	Tin-Lead	No Tail	0.245 in	6.22 mm	Beryllium Copper	Hex Press-Fit	1.4 mm	0.055 in	0.041 in	1.04 mm	2.54 µm	100 µin	0.031 in	0.79 mm	0.38 mm	0.022 in	0.015 "	0.56 mm

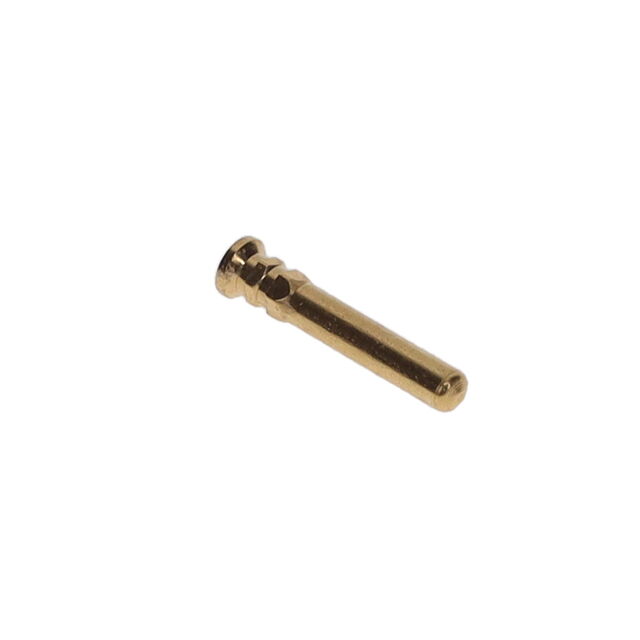

Mill-Max Manufacturing Corp. 8553-0-15-15-11-27-10-0	-55 C	125 °C	5.82 mm	0.229 in	Gold	No Tail	0.245 in	6.22 mm	Beryllium Copper	Hex Press-Fit	1.4 mm	0.055 in	0.041 in	1.04 mm	0.76 Ám	30 Áin	0.031 in	0.79 mm	0.38 mm	0.02 in	0.015 "		0.51 mm
Mill-Max Manufacturing Corp. 8553-0-15-15-11-14-10-0	-55 C	125 °C	2.11 mm	0.083 in	Gold	No Tail	0.245 in	6.22 mm	Beryllium Copper	Hex Press-Fit	1.4 mm	0.055 in			0.25 Ám	10 Áin	0.031 in	0.79 mm	0.38 mm	0.02 in	0.015 "		0.51 mm
