FR Series

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS FR 1,27/ 80-FH

Part	Insulation Material	Contact Material	Contact Shape	Contact Finish - Post	Contact Type	Features	Number of Positions Loaded	Fastening Type	Pitch - Mating	Pitch - Mating	Number of Positions	Insulation Color	Current Rating (Amps)	Number of Rows [custom]	Connector Type	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height [z]	Mounting Type	Termination	Insulation Height	Shrouding	Style	Insulation Height [custom]	Insulation Height [custom]	Voltage Rating	Accessory Type

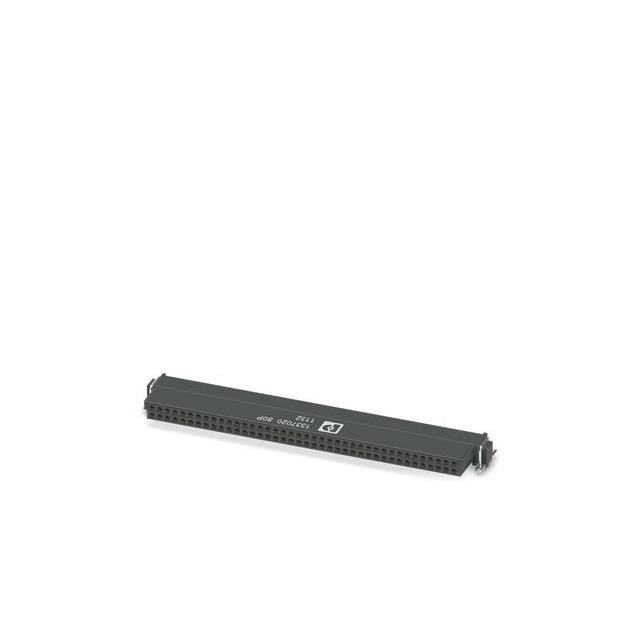

Phoenix Contact 1337020	Liquid Crystal Polymer (LCP)	Copper Alloy	Rectangular	Tin	Female Socket	Board Guide Solder Retention	All	Push-Pull	1.27 mm	0.05 in	80	Black	2.2 A	2	Receptacle	Gold	-55 C	125 °C	UL94 V-0	0.05 in	1.27 mm	3.78 mm	0.149 in	Right Angle Surface Mount	Solder

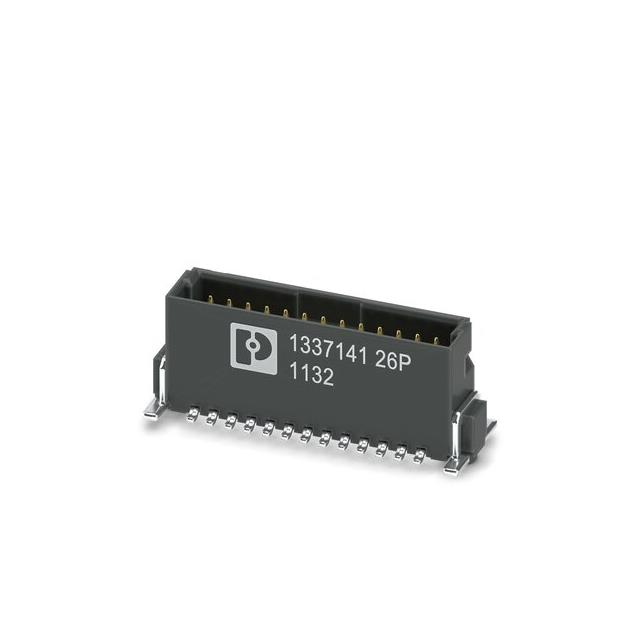

Phoenix Contact 1337141	Liquid Crystal Polymer (LCP)	Copper Alloy	Square	Gold	Male Pin	Board Guide Solder Retention	All	Push-Pull	1.27 mm	0.05 in	26	Black	2.2 A	2	Header	Gold	-55 C	125 °C	UL94 V-0	0.05 in	1.27 mm	8.25 mm		Surface Mount	Solder	0.325 in	Shrouded - 4 Wall	Board to Cable/Wire

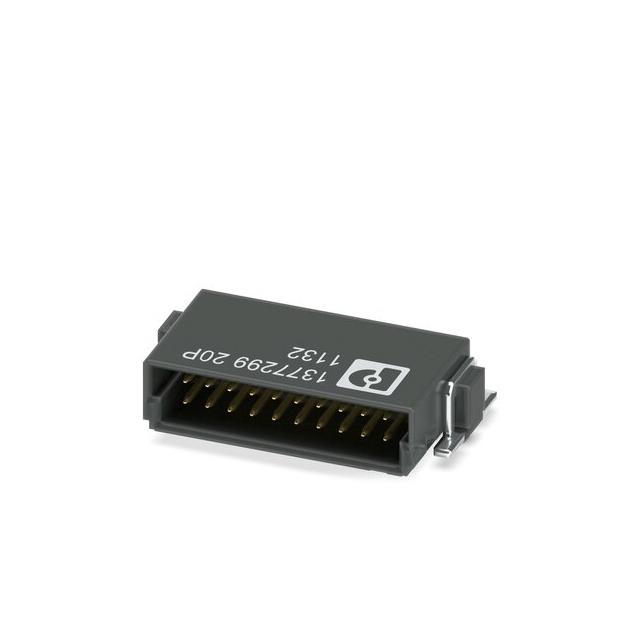

Phoenix Contact 1377299	Liquid Crystal Polymer (LCP)	Copper Alloy	Circular	Tin	Male Pin	Solder Retention	All	Push-Pull	1.27 mm	0.05 in	20	Black	2 A	2	Header	Gold	-55 C	125 °C	UL94 V-0					Right Angle Surface Mount	Solder		Shrouded - 4 Wall	Board to Cable/Wire	0.195 in	4.95 mm	500 VAC

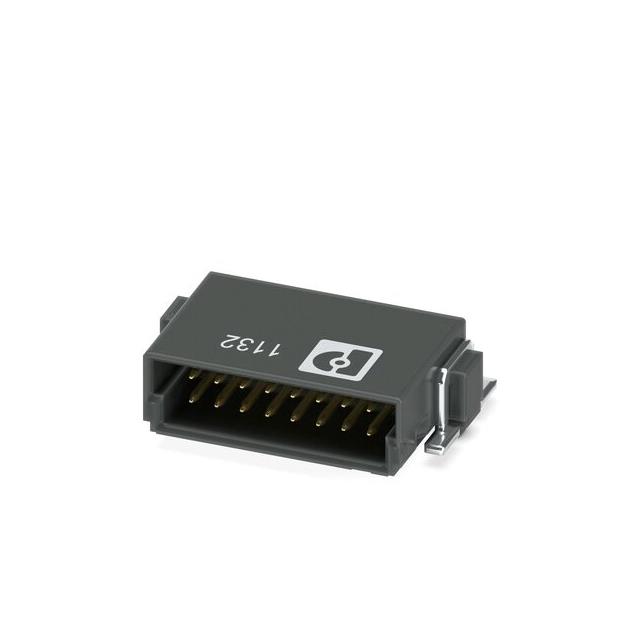

Phoenix Contact 1377298	Liquid Crystal Polymer (LCP)	Copper Alloy	Square	Gold	Male Pin	Board Guide Solder Retention	All	Push-Pull	1.27 mm	0.05 in	16	Black	2 A	2	Header	Gold	-55 C	125 °C	UL94 V-0	0.05 in	1.27 mm	4.25 mm		Right Angle Surface Mount	Solder	0.167 "	Shrouded - 4 Wall	Board to Cable/Wire
Phoenix Contact 1373827	Liquid Crystal Polymer (LCP)	Copper Alloy	Square	Gold	Male Pin	Board Guide Solder Retention	All	Push-Pull	1.27 mm	0.05 in	12	Black	2.2 A	2	Header	Gold	-55 C	125 °C	UL94 V-0	0.05 in	1.27 mm	6.76 mm		Surface Mount	Solder	0.266 in	Shrouded - 4 Wall	Board to Cable/Wire

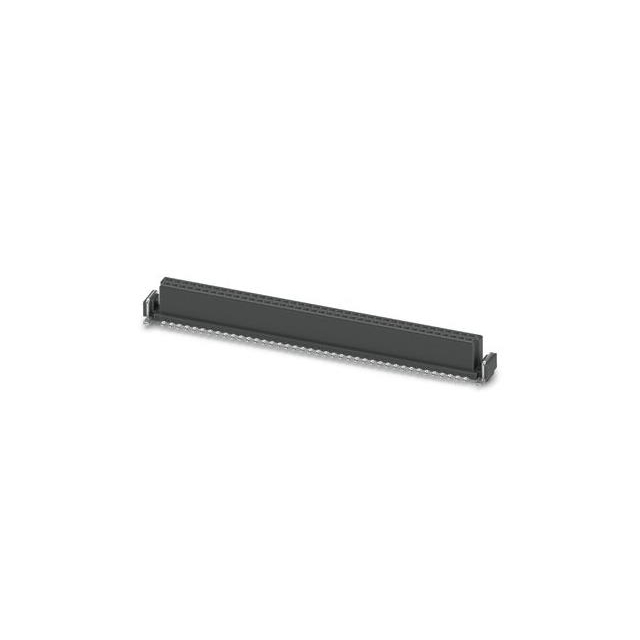

Phoenix Contact 1374036	Liquid Crystal Polymer (LCP)	Copper Alloy	Rectangular	Tin	Female Socket	Board Guide Solder Retention	All	Push-Pull	1.27 mm	0.05 in	80	Black	2.2 A	2	Receptacle	Gold	-55 C	125 °C	UL94 V-0	0.05 in	1.27 mm	6.25 mm		Surface Mount	Solder	0.246 in
Phoenix Contact 1374880	Liquid Crystal Polymer (LCP)	Copper Alloy	Rectangular	Tin	Female Socket	Board Guide Solder Retention	All	Push-Pull	1.27 mm	0.05 in	40	Black	2.1 A	2	Receptacle	Gold	-55 C	125 °C	UL94 V-0	0.05 in	1.27 mm	9.05 mm		Surface Mount	Solder	0.356 "
Phoenix Contact 1337139	Liquid Crystal Polymer (LCP)	Copper Alloy	Square	Gold	Male Pin	Board Guide Solder Retention	All	Push-Pull	1.27 mm	0.05 in	16	Black	2.2 A	2	Header	Gold	-55 C	125 °C	UL94 V-0	0.05 in	1.27 mm	8.25 mm		Right Angle Surface Mount	Solder	0.325 in	Shrouded - 4 Wall	Board to Cable/Wire
Phoenix Contact 1399642											20																					Strain Relief

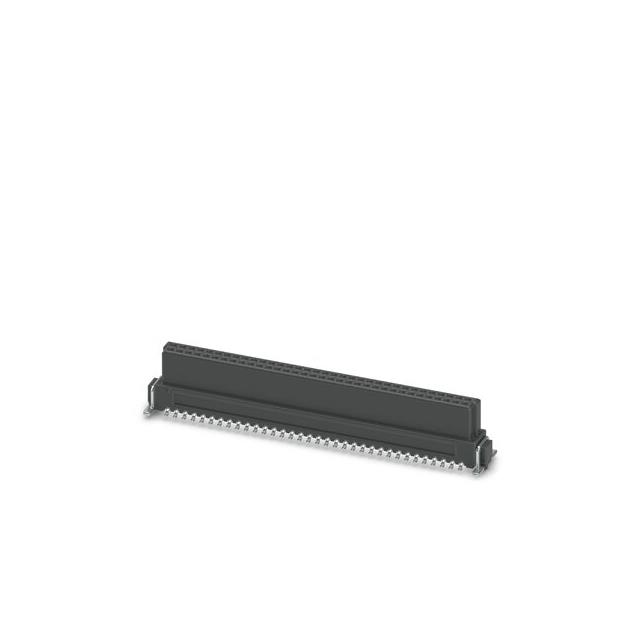

Phoenix Contact 1374882	Liquid Crystal Polymer (LCP)	Copper Alloy	Rectangular	Tin	Female Socket	Solder Retention	All	Push-Pull	1.27 mm	0.05 in	68 positions	Black	2.1 A	2	Receptacle	Gold	-55 C	125 °C	UL94 V-0			9.05 mm		Surface Mount	Solder	0.356 "
