OAB318 Series
Manufacturer: ORION FANS
Beta
⌘K

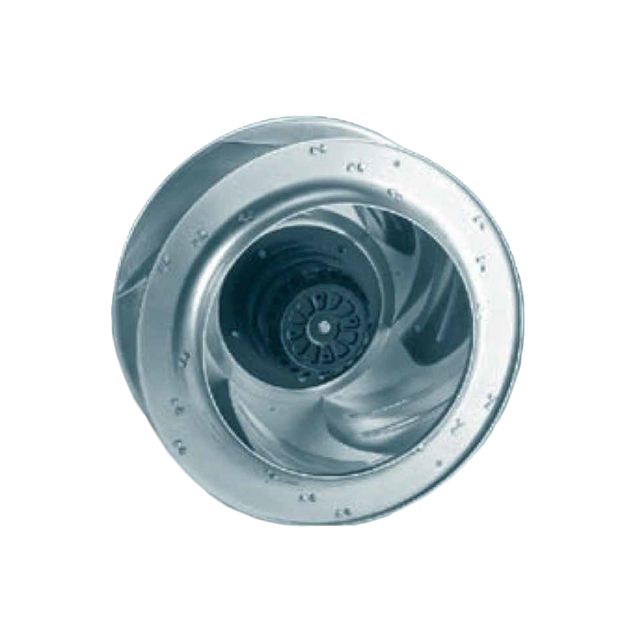

FAN IMP MTRZD 318X154 115V W/CAP
| Part | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Material - Frame | Current Rating (Amps) | Material - Blade | Approval Agency | Air Flow | Air Flow | Weight | Weight | RPM | Voltage - Rated | Bearing Type | Noise | Operating Temperature [Max] | Operating Temperature [Min] | Fan Type | Features | Static Pressure | Static Pressure | Width [x] | Size / Dimension [diameter] | Termination | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | 108 VAC | 125 VAC | 40 °C 60000 Hrs | Aluminum | 1.4 A | Metal | cURus TUV | 1165 CFM | 32.62 mł/min | 4 kg | 8.8 lbs | 1580 RPM | 115 VAC | Ball | 66 dB | 80 °C | -20 ░C | Motorized Impellers | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | 1.6 in H2O | 398.6 Pa | 154.5 mm | 318 mm | 4 Wire Leads | 155 W |
ORION FANS | 210 VAC | 240 VAC | 40 °C 60000 Hrs | Aluminum | 0.68 A | Metal | cURus TUV | 1165 CFM | 32.62 mł/min | 4 kg | 8.8 lbs | 1580 RPM | 230 VAC | Ball | 66 dB | 80 °C | -20 ░C | Motorized Impellers | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | 1.6 in H2O | 398.6 Pa | 154.5 mm | 318 mm | 4 Wire Leads | 155 W |
