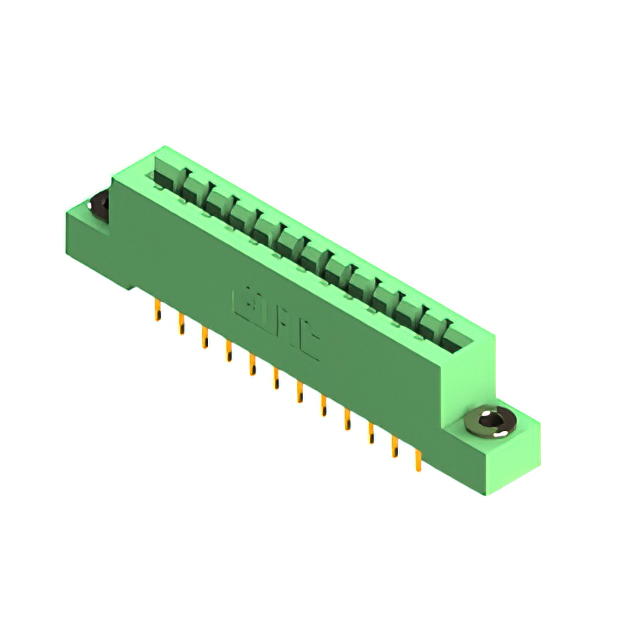

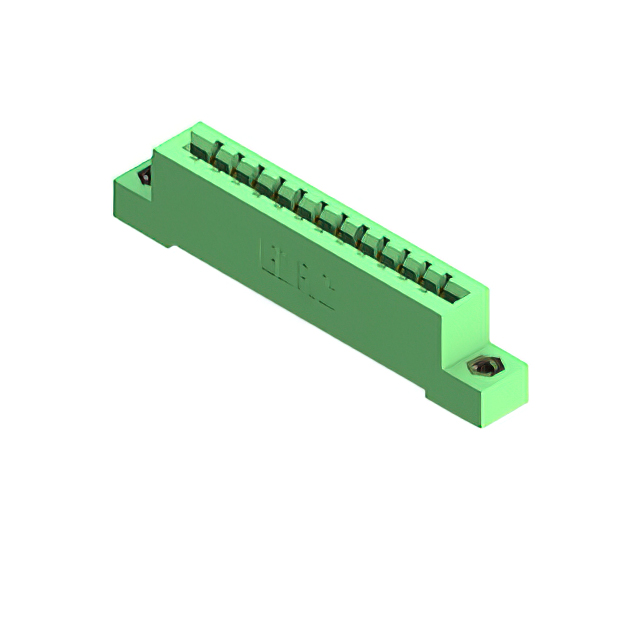

837-012 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 12POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Contact Finish | Card Type | Contact Finish Thickness | Contact Finish Thickness | Features | Number of Rows [custom] | Contact Type | Gender | Mounting Type | Read Out | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row | Color | Number of Positions | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Contact Material | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Gold | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Card Extender | 2 | Cantilever | Female | Board Edge Straddle Mount | Dual | Solder | 125 °C | -40 C | 6 | Green | 12 | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Copper Alloy | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | Gold | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Cantilever | Female | Through Hole | Single | Solder | 125 °C | -40 C | 12 | Green | 12 | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Copper Alloy | 1 | 1 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Gold | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Cantilever | Female | Through Hole | Single | Solder | 125 °C | -40 C | 12 | Green | 12 | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Copper Alloy | 1 | 1 | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Gold | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 2 | Cantilever | Female | Through Hole | Dual | Solder | 125 °C | -40 C | 6 | Green | 12 | Flush Mount M3 Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Copper Alloy | |||||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Gold | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Card Extender | 2 | Cantilever | Female | Board Edge Straddle Mount | Dual | Solder | 125 °C | -40 C | 6 | Green | 12 | 0.128 " | 3.25 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Copper Alloy | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Gold | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Card Extender | 2 | Cantilever | Female | Board Edge Straddle Mount | Dual | Solder | 125 °C | -40 C | 6 | Green | 12 | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Copper Alloy | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | Gold | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Cantilever | Female | Through Hole | Single | Wire Wrap | 125 °C | -40 C | 12 | Green | 12 | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Copper Alloy | 1 | 1 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Gold | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Cantilever | Female | Right Angle Through Hole | Single | Solder | 125 °C | -40 C | 12 | Green | 12 | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Copper Alloy | 1 | 1 | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Gold | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Card Extender | 2 | Cantilever | Female | Board Edge Straddle Mount | Dual | Solder | 125 °C | -40 C | 6 | Green | 12 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Copper Alloy | |||||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Gold | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 2 | Cantilever | Female | Right Angle Through Hole | Dual | Solder | 125 °C | -40 C | 6 | Green | 12 | 0.116 " | Floating Bobbin Top Mount Opening | 2.95 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Copper Alloy |
