PT06A Series

Manufacturer: Amphenol Aerospace Operations

Catalog

Catalog

CONN PLUG 18POS INLINE SKT

...

Part	Applications	Contact Material	Insert Material	Backshell Material, Plating	Shell Finish	Color	Shielding	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Qualification	Termination	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Primary Material	Contact Finish - Mating	Connector Type	Number of Positions	Features	Mounting Type	Orientation	Shell Material	Backshell Material	Plating	Type	Contact Size	Contact Type	Note	Contact Shape	Shell Size - Insert Length	Shell Size - Insert Width	Housing Color	Voltage Rating
Amphenol Aerospace Operations PT06A-14-18SW(SR)	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Neoprene	Aluminum Olive Drab Cadmium	Cadmium Olive Drab Chromate	Olive Drab	Unshielded	125 °C	-55 °C	Bayonet Lock	MIL-DTL-26482 Series I	Solder Cup	14 S	18	Metal	Gold	Female Sockets Plug	18	Strain Relief	Free Hanging (In-Line)	W	Aluminum

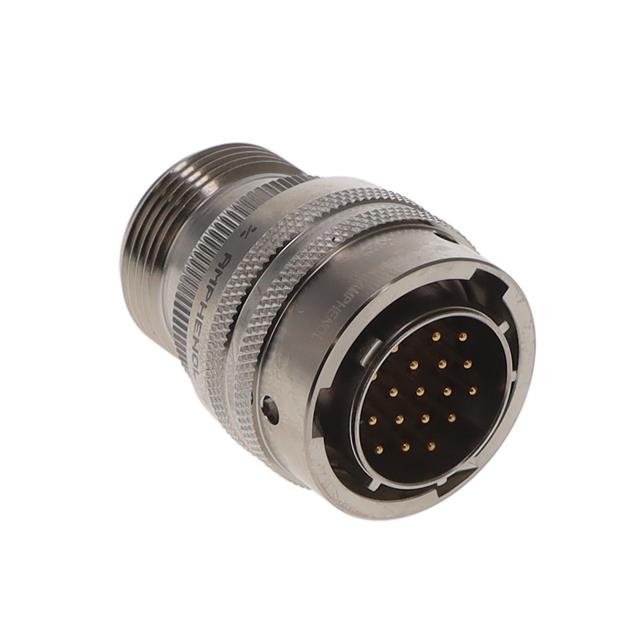

Amphenol Aerospace Operations PT06A14-18P-023	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Neoprene		Electroless Nickel	Silver	Unshielded	125 °C	-55 °C	Bayonet Lock	MIL-DTL-26482 Series I	Solder Cup	14 S	18	Metal	Gold	Male Pins Plug	18	Backshell Coupling Nut	Free Hanging (In-Line)	N (Normal)	Aluminum	Aluminum	Electroless Nickel
Amphenol Aerospace Operations PT06A10-6P-SR-LC			Neoprene		Cadmium Chromate		Unshielded	125 °C	-55 °C	Bayonet Lock	MIL-DTL-26482 Series I						Plug Housing	6	Backshell Coupling Nut	Free Hanging (In-Line)	N (Normal)	Aluminum			For Male Pins	20	Crimp	Contacts Not Included	Circular	10 mm	6 mm	Olive Drab

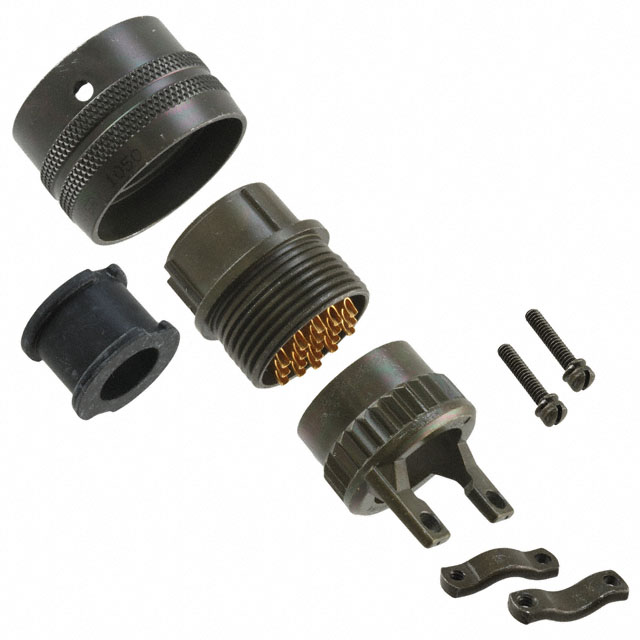

Amphenol Aerospace Operations PT06A-14-19S(SR)	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Neoprene	Aluminum Olive Drab Cadmium	Cadmium Olive Drab Chromate	Olive Drab	Unshielded	125 °C	-55 °C	Bayonet Lock	MIL-DTL-26482 Series I	Solder Cup	14 S	19	Metal	Gold	Female Sockets Plug	19	Strain Relief	Free Hanging (In-Line)	N (Normal)	Aluminum

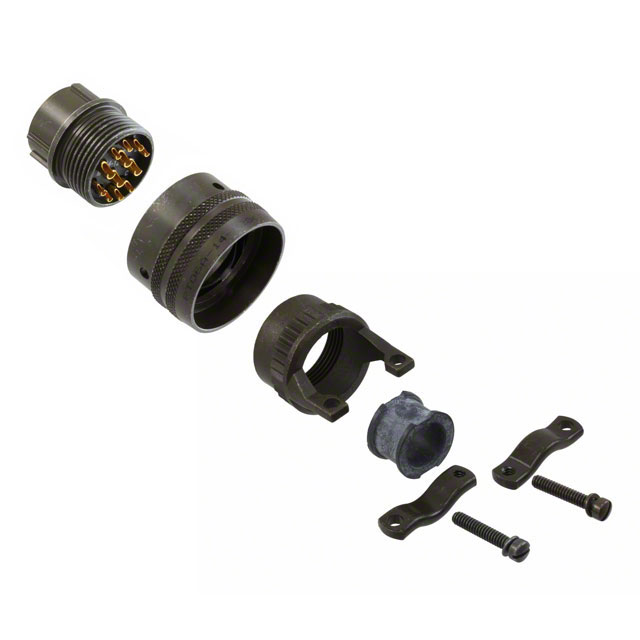

Amphenol Aerospace Operations PT06A-14-12S(SR)	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Neoprene	Aluminum Olive Drab Cadmium	Cadmium Olive Drab Chromate	Olive Drab	Unshielded	125 °C	-55 °C	Bayonet Lock	MIL-DTL-26482 Series I	Solder Cup			Metal	Gold	Female Sockets Plug	12	Strain Relief	Free Hanging (In-Line)	N (Normal)	Aluminum								14 mm	12 mm
Amphenol Aerospace Operations PT06A12-4P-SR	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Copper Alloy	Neoprene	Aluminum Olive Drab Cadmium	Cadmium Olive Drab Chromate	Olive Drab	Unshielded	125 °C	-55 °C	Bayonet Lock	MIL-DTL-26482 Series I	Solder Cup			Metal	Gold	Male Pins Plug	4	Strain Relief	Free Hanging (In-Line)	N (Normal)	Aluminum								12 mm	4 mm

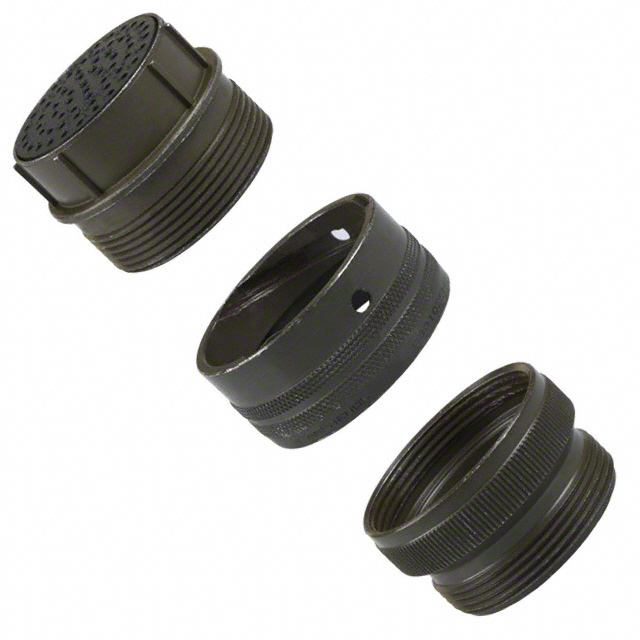

Amphenol Aerospace Operations PT06A-24-61S(025)	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Neoprene		Black Zinc Cobalt	Black	Unshielded	125 °C	-55 °C	Bayonet Lock	MIL-DTL-26482 Series I	Solder Cup	24	61	Metal	Gold	Female Sockets Plug	61	Backshell Coupling Nut	Free Hanging (In-Line)	N (Normal)	Aluminum	Aluminum	Black Zinc Cobalt
Amphenol Aerospace Operations PT06A16-23P-470	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Copper Alloy	Neoprene		Black Zinc Cobalt	Black	Unshielded	125 °C	-55 °C	Bayonet Lock	MIL-DTL-26482 Series I	Solder Cup	16 S	23	Metal	Gold	Male Pins Plug	23	Backshell Coupling Nut Strain Relief	Free Hanging (In-Line)	N (Normal)	Aluminum	Aluminum	Black Zinc Cobalt									600 V
Amphenol Aerospace Operations PT06A20-39SZ	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Copper Alloy	Neoprene	Aluminum Olive Drab Cadmium	Cadmium Olive Drab Chromate	Olive Drab	Unshielded	125 °C	-55 °C	Bayonet Lock	MIL-DTL-26482 Series I	Solder Cup	20	39	Metal	Gold	Female Sockets Plug	39		Free Hanging (In-Line)	Z	Aluminum

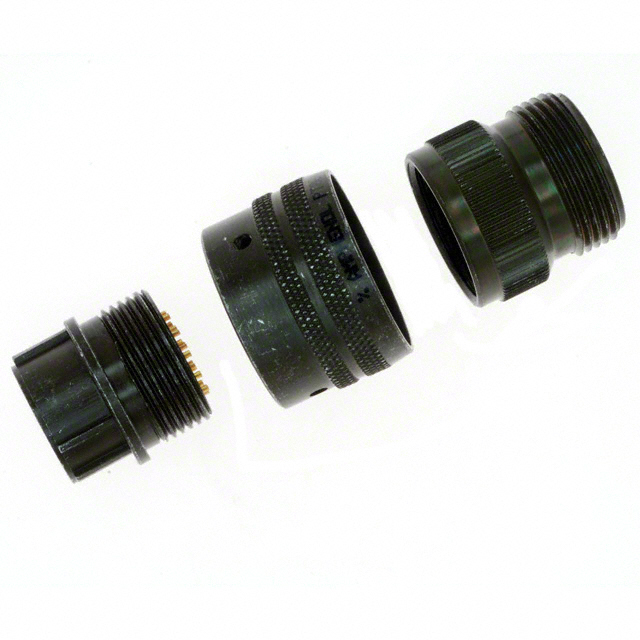

Amphenol Aerospace Operations PT06A-14-15P	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Neoprene	Aluminum Olive Drab Cadmium	Cadmium Olive Drab Chromate	Olive Drab	Unshielded	125 °C	-55 °C	Bayonet Lock	MIL-DTL-26482 Series I	Solder Cup	14 S	15	Metal	Gold	Male Pins Plug	15	Backshell Coupling Nut	Free Hanging (In-Line)	N (Normal)	Aluminum
