FP75R12 Series

Manufacturer: INFINEON

Catalog

IGBT MOD 1200V 150A 385W

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	Mounting Type	Configuration	Power - Max [Max]	Input Capacitance (Cies) @ Vce	Package / Case	Input	Vce(on) (Max) @ Vge, Ic [Max]	Current - Collector Cutoff (Max) [Max]	IGBT Type	Vce(on) (Max) @ Vge, Ic
INFINEON FP75R12KT4B16BOSA1	1200 V	-40 C	150 °C	150 A	Module	Chassis Mount	Three Phase Inverter	385 W	4.3 nF	Module	Three Phase Bridge Rectifier	2.25 V	1 mA	Trench Field Stop

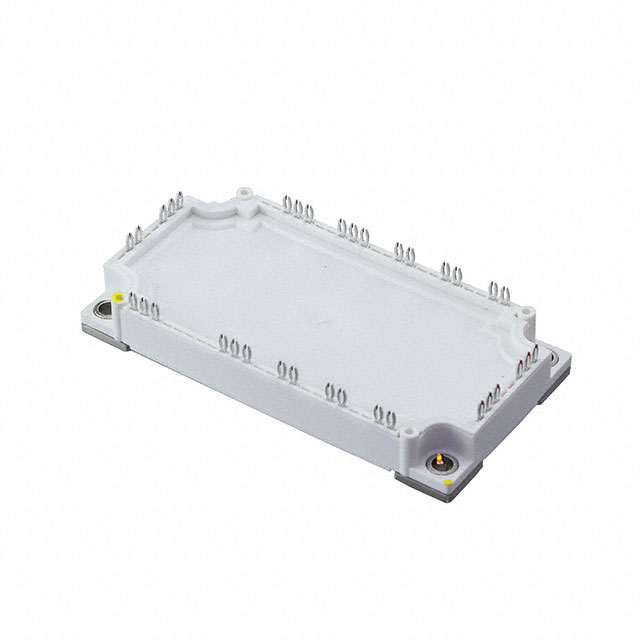

INFINEON FP75R12KT4B11BOSA1	1200 V	-40 °C	150 °C	75 A	Module	Chassis Mount	Three Phase Inverter	385 W	4.3 nF	Module	Standard		1 mA	Trench Field Stop	2.15 V
INFINEON FP75R12N3T4PB81BPSA1
INFINEON FP75R12N2T7B11BPSA1	1200 V	-40 °C	175 °C	75 A	AG-ECONO2B	Chassis Mount	Three Phase Inverter	20 mW	15.1 nF	Module	Three Phase Bridge Rectifier		14 µA	Trench Field Stop	1.55 V
INFINEON FP75R12N2T7B11BPSA2	1200 V	-40 °C	175 °C	75 A	AG-ECONO2B	Chassis Mount	Three Phase Inverter	20 mW	15.1 nF	Module	Three Phase Bridge Rectifier		14 µA	Trench Field Stop	1.55 V

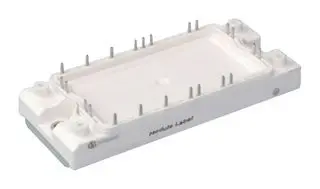

INFINEON FP75R12N2T7BPSA2	1200 V	-40 °C	175 °C	75 A	AG-ECONO2B	Chassis Mount	Three Phase Inverter	20 mW	15.1 nF	Module	Three Phase Bridge Rectifier		14 µA	Trench Field Stop	1.55 V
INFINEON FP75R12N2T7BPSA1	1200 V	-40 °C	175 °C	75 A	AG-ECONO2B	Chassis Mount	Three Phase Inverter	20 mW	15.1 nF	Module	Three Phase Bridge Rectifier		14 µA	Trench Field Stop	1.55 V
INFINEON FP75R12KT3BOSA1	1200 V	-40 C	125 °C	105 A	Module	Chassis Mount	Three Phase Inverter	355 W	5.3 nF	Module	Standard		1 mA	Trench Field Stop	2.15 V
INFINEON FP75R12KT4PB11BPSA1	1200 V	-40 C	150 °C	150 A	Module	Chassis Mount	Three Phase Inverter	20 mW	4.3 nF	Module	Three Phase Bridge Rectifier		1 mA	Trench Field Stop	2.15 V
INFINEON FP75R12N2T4B16BOSA1
