R16457 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

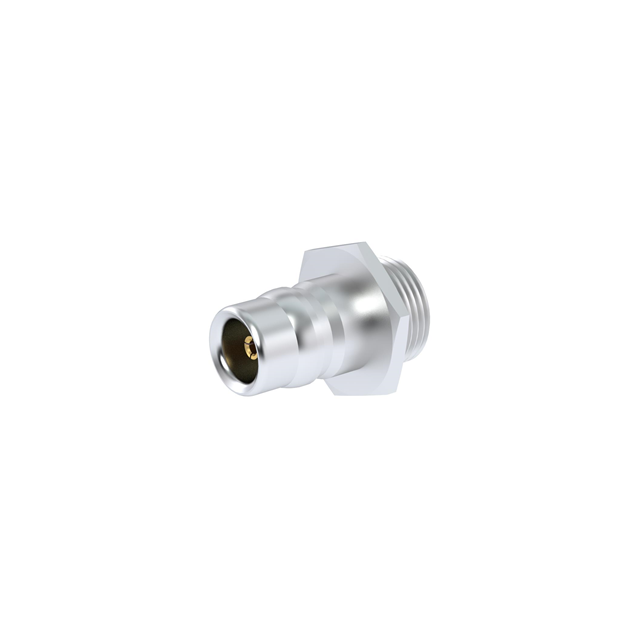

QN / THREAD-IN RECEPTACLE FRONT
| Part | Body Material | Body Finish | Dielectric Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Connector Style | Contact Termination | Fastening Type | Center Contact Material | Connector Type | Impedance | Shield Termination | Housing Color | Frequency - Max [Max] | Ingress Protection | Number of Ports | Mounting Type | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | White Bronze | Polytetrafluoroethylene (PTFE) | Gold | -55 C | 125 °C | 1000 VDC | QN | Solder | Snap-On | Beryllium Copper | Receptacle Female Socket | 50 Ohms | Solder | Silver | 6000 MHz | IP68 - Dust Tight Waterproof | 1 | Panel Mount | Bulkhead - Rear Side Nut |
