RD Series

Catalog

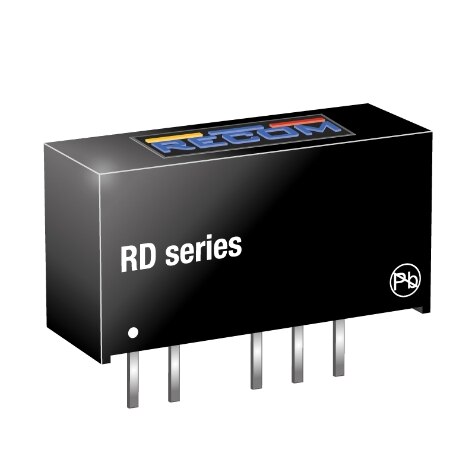

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W DC/DC 1KV UNREG 24VIN +/-15VOUT

Part	Efficiency	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max)	Type	Package / Case	Mounting Type	Voltage - Output 2	Applications	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Isolation	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Voltage - Output 1
Recom Power RD-2415D/P	86 %	SCP	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	66 mA	Isolated Module	7-SIP Module 5 Leads	Through Hole	-15 V	ITE (Commercial)	21.6 V	26.4 V	1000 V	2	85 °C	-40 C	2 W	15 V
Recom Power RD-1205D/H		SCP	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in		Isolated Module	7-SIP Module 5 Leads	Through Hole	-5 V	ITE (Commercial)	10.8 V	13.2 V	2000 V	2	85 °C	-40 C	2 W	5 V
Recom Power RD-1205D		SCP	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in		Isolated Module	7-SIP Module 5 Leads	Through Hole	-5 V	ITE (Commercial)	10.8 V	13.2 V	1000 V	2	85 °C	-40 C	2 W	5 V
Recom Power RD-2405D/HP		SCP	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in		Isolated Module	7-SIP Module 5 Leads	Through Hole	-5 V	ITE (Commercial)	21.6 V	26.4 V	2000 V	2	85 °C	-40 C	2 W	5 V
Recom Power RD-2415D/HP	86 %	SCP	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	66 mA	Isolated Module	7-SIP Module 5 Leads	Through Hole	-15 V	ITE (Commercial)	21.6 V	26.4 V	2000 V	2	85 °C	-40 C	2 W	15 V
Recom Power RD-1224D	86 %		0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	42 mA	Isolated Module	7-SIP Module 5 Leads	Through Hole	-24 V	ITE (Commercial)	10.8 V	13.2 V	1000 V	2	85 °C	-40 C	2 W	24 V
Recom Power RD-2424D/H	86 %		0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	42 mA	Isolated Module	7-SIP Module 5 Leads	Through Hole	-24 V	ITE (Commercial)	21.6 V	26.4 V	2000 V	2	85 °C	-40 C	2 W	24 V
Recom Power RD-1224D/H	86 %		0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	42 mA	Isolated Module	7-SIP Module 5 Leads	Through Hole	-24 V	ITE (Commercial)	10.8 V	13.2 V	2000 V	2	85 °C	-40 C	2 W	24 V
Recom Power RD-1205D/HP		SCP	0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in		Isolated Module	7-SIP Module 5 Leads	Through Hole	-5 V	ITE (Commercial)	10.8 V	13.2 V	2000 V	2	85 °C	-40 C	2 W	5 V
Recom Power RD-2424D	86 %		0.4 "	19.7 mm	7.1 mm	0.77 in	10.2 mm	0.28 in	42 mA	Isolated Module	7-SIP Module 5 Leads	Through Hole	-24 V	ITE (Commercial)	21.6 V	26.4 V	1000 V	2	85 °C	-40 C	2 W	24 V
