35HDRA Series

Catalog

PHONE AUDIO CONNECTOR, 3 CONTACTS, PLUG, 3.5 MM, CABLE MOUNT, GOLD PLATED CONTACTS, BRASS BODY

Part	Contact Material - Plating	Body Material	Contact Material	Cable Opening	Cable Opening	Housing Material	Current Rating (Amps)	Mating Length/Depth	Mating Length/Depth	Includes	Voltage - Rated	Body Color	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Signal Lines	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Actual Diameter [diameter]	Actual Diameter [diameter]	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Shielding	Connector Type	Gender
SWITCHCRAFT/CONXALL 35HDRABAU	Gold	Brass	Brass	6.35 mm	0.25 in	Brass	4 A	14.2 mm	0.56 in	1 Connector 1 Handle 1 Insulator Tube	140 VDC 250 VAC	Black Gold	Solder	0 °C	66 °C	Free Hanging (In-Line) Right Angle	Stereo (3 Conductor TRS)	3	3	3.5 mm	0.138 in	0.125 in	3.5 mm	0.141 in	Shielded	Phone Plug	Male

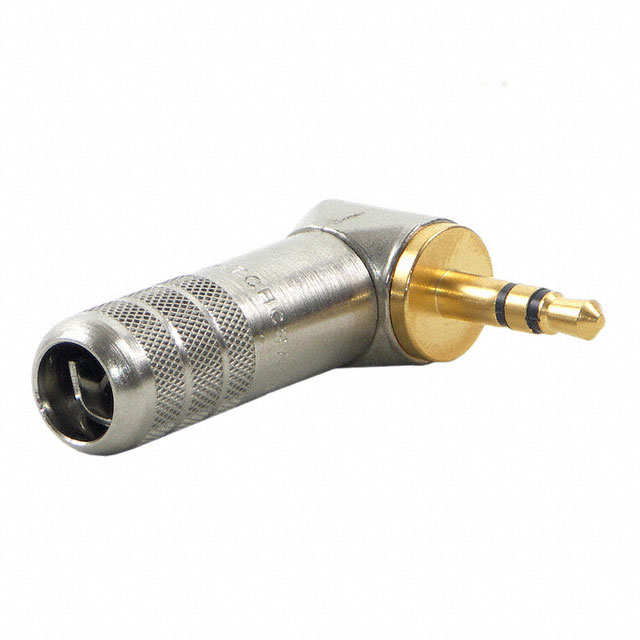

SWITCHCRAFT/CONXALL 35HDRANAU	Gold	Brass	Brass	7.37 mm	0.29 in	Brass	4 A	13 mm	0.51 in	1 Connector 1 Handle 1 Insulator Tube	140 VDC 250 VAC	Silver	Solder	0 °C	66 °C	Free Hanging (In-Line) Right Angle	Stereo (3 Conductor TRS)	3	3	3.5 mm	0.138 in	0.125 in	3.5 mm	0.141 in	Shielded	Phone Plug	Male

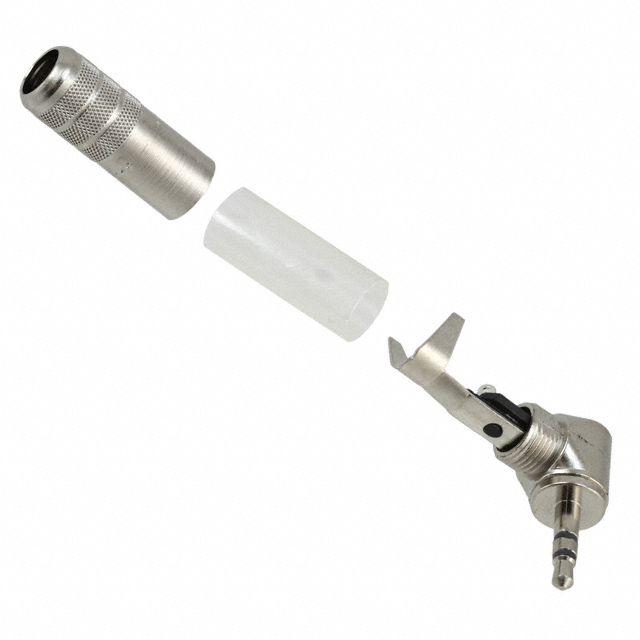

SWITCHCRAFT/CONXALL 35HDRANN	Nickel	Brass	Brass	7.37 mm	0.29 in	Brass	4 A	13 mm	0.51 in	1 Connector 1 Handle 1 Insulator Tube	140 VDC 250 VAC	Silver	Solder			Free Hanging (In-Line) Right Angle	Stereo (3 Conductor TRS)	3	3	3.5 mm	0.138 in	0.125 in	3.5 mm	0.141 in	Shielded	Phone Plug	Male
SWITCHCRAFT/CONXALL 35HDRANNS	Nickel	Brass	Brass	4.44 mm	0.175 in	Brass	4 A	13 mm	0.51 in	1 Connector 1 Handle 1 Insulator Tube	140 VDC 250 VAC	Silver	Solder	0 °C	66 °C	Free Hanging (In-Line) Right Angle	Stereo (3 Conductor TRS)	3	3	3.5 mm	0.138 in	0.125 in	3.5 mm	0.141 in	Shielded	Phone Plug	Male
SWITCHCRAFT/CONXALL 35HDRABN
