MA1270 Series

Catalog

ANTENNA RAPTORIII 7IN1 3M COMBO

Part	Mounting Type	Applications [custom]	Frequency (Center/Band)	Power - Max [Max]	RF Family/Standard	Gain	Number of Bands	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Return Loss	VSWR [Max]	VSWR [Min]	Height (Max) [z]	Height (Max) [z]	Ingress Protection	Antenna Type	Features	Frequency Range [Min]	Frequency Range [Max]

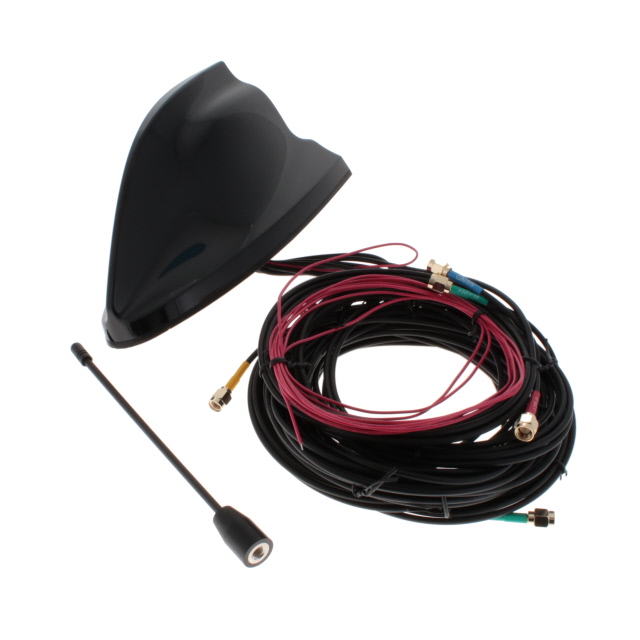

Taoglas Limited MA1270.A.LBICGTY.005	Panel Mount	3G 4G 5G Beidou Galileo GLONASS GNSS GPS HSPA HSPA+ LTE WCDMA Wi-Fi	1.07 MHz 1.4725 GHz 1.561 GHz 1.575 GHz 1.602 GHz 1.955 GHz 2.45 GHz 2.59 GHz 3.55 GHz 5.5 GHz 5.5375 GHz 98 MHz 425 MHz 657.5 MHz 752 MHz 892 MHz	10 W	Cellular Navigation WiFi	-3.7 dBi -1.9 dBi -1.7 dBi 0 dBi 0.4 dBi 0.6 dBi 0.9 dBi 1.6 dBi 1.8 dBi 2.8 dBi 3.3 dBi 3.6 dBi 3.7 dBi	16	2 GHz	1 GHz	UHF	-11 dB	3.7	2	3.661 in	92.98 mm	IP67	Dome	Cable - 3m Filter LNA	1.427 GHz 1.71 GHz 2.4 GHz 2.49 GHz 3.3 GHz 5.15 GHz 88 MHz 380 MHz 535 kHz 617 MHz 698 MHz 824 MHz	1.518 GHz 1.605 MHz 2.2 GHz 2.5 GHz 2.69 GHz 3.8 GHz 5.85 GHz 5.925 GHz 108 MHz 470 MHz 698 MHz 806 MHz 960 MHz
