GA2LAC-P Series
Manufacturer: ODU
Beta
⌘K

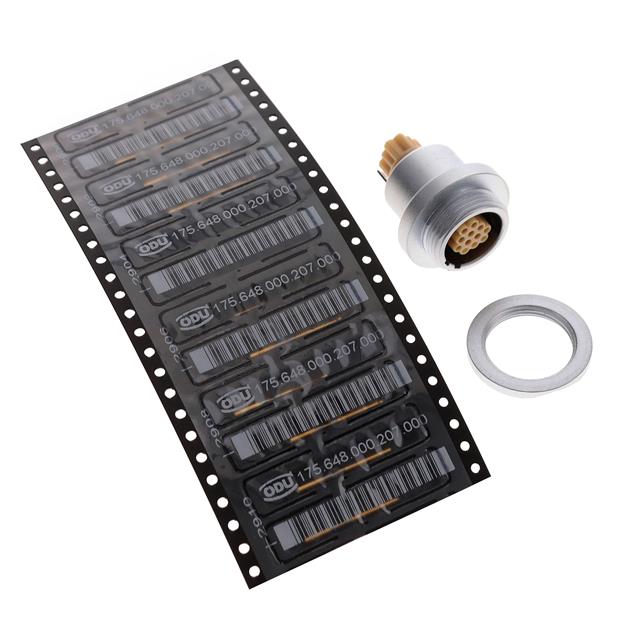

ODU MINI-SNAP RECEPT, STY A, SZ
| Part | Contact Finish - Mating | Applications | Primary Material | Insert Material | Ingress Protection | Mounting Type | Shielding | Connector Type | Shell Finish | Current Rating (Amps) | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Color | Voltage Rating | Orientation | Shell Size - Insert [custom] | Mounting Feature | Features | Contact Material | Shell Material | Number of Positions | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gold | Industrial Medical Military Testing Equipment & Measurement | Metal | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Panel Mount | Unshielded | Receptacle Female Sockets | Chrome over Nickel | 16 A | Push-Pull | 120 °C | -40 C | Silver | 800 V | A | 2 | Bulkhead - Front Side Nut | Ground | Brass | Brass | |||
Gold | Industrial Medical Military Testing Equipment & Measurement | Metal | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Panel Mount | Shielded | Receptacle Female Sockets | Chrome over Nickel | 10 A | Push-Pull | 120 °C | -40 C | Silver | 48 VDC | A | 2 | Bulkhead - Front Side Nut | Medical (IEC 60601 (2 MOOP/2 MOPP)) | Brass | Brass | 8 | Crimp | |
Gold | Industrial Medical Military Testing Equipment & Measurement | Metal | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Panel Mount | Shielded | Receptacle Female Sockets | Chrome over Nickel | 7.5 A | Push-Pull | 120 °C | -40 C | Silver | 48 VDC | A | 2 | Bulkhead - Front Side Nut | Medical (IEC 60601 (2 MOOP/2 MOPP)) | Brass | Brass | 12 | Crimp |
