ECL05US15 Series

Manufacturer: XP Power

Catalog

AC/DC CONVERTER 15V 5W

Part	Weight	Weight	Line Regulation	Load Regulation	Voltage - Output 1	Number of Outputs	Power (Watts)	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Mounting Type	Type	Standard Number	Applications	Features	Package / Case	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]

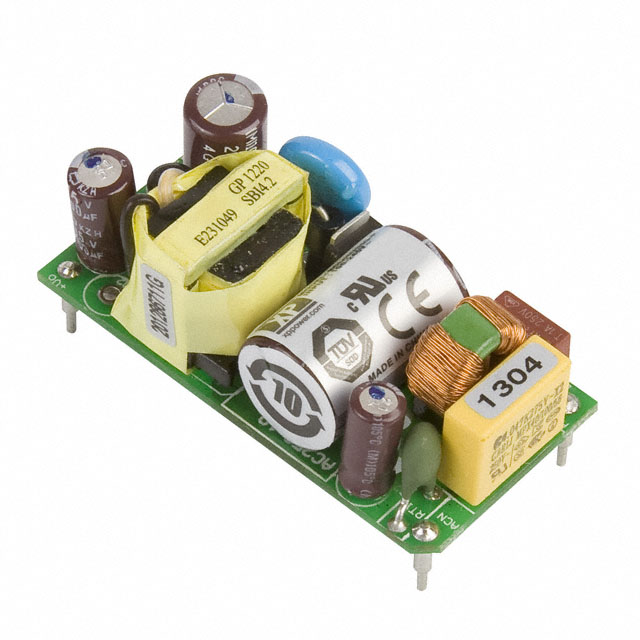

XP Power ECL05US15-P	0.057 lb	25.85 g	0.5 %	±1%	15 V	1	5 W	330 mA	70 °C	-20 °C	CSA cUL EN IEC UL	Through Hole	Open Frame	62368-1	ITE (Commercial)	Universal Input	4-DIP Module	80 %	22.9 mm	1 "	2 in	25.4 mm	50.8 mm	0.9 in
XP Power ECL05US15-E	0.132 lb	59.87 g	0.5 %	±1%	15 V	1	5 W	330 mA	70 °C	-20 °C	CSA cUL EN IEC UL	Through Hole	Enclosed	62368-1	ITE (Commercial)	Universal Input	4-DIP Module	80 %	23 mm	1.07 in	2.06 "	27.2 mm	52.3 mm	0.91 in
