IRLU2705 Series
Manufacturer: INFINEON
Beta
⌘K

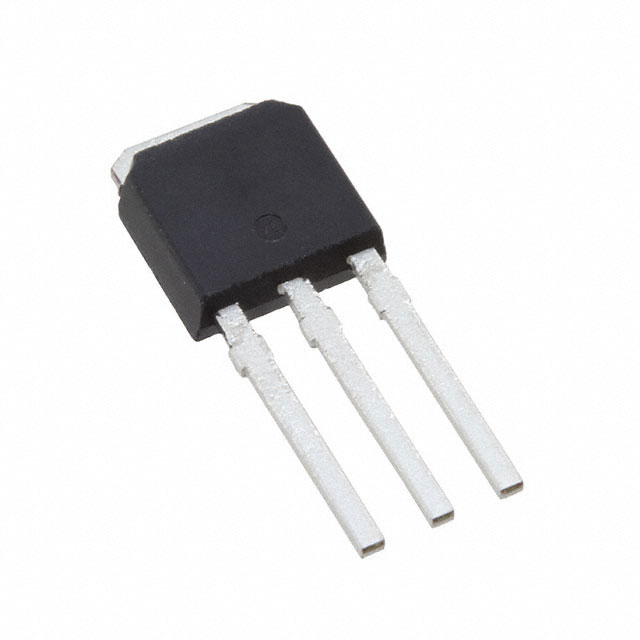

MOSFET N-CH 55V 28A I-PAK
| Part | Mounting Type | FET Type | Operating Temperature [Max] | Operating Temperature [Min] | Drive Voltage (Max Rds On, Min Rds On) [Max] | Drive Voltage (Max Rds On, Min Rds On) [Min] | Rds On (Max) @ Id, Vgs [Max] | Technology | Package / Case | Vgs(th) (Max) @ Id | Drain to Source Voltage (Vdss) | Supplier Device Package | Vgs (Max) | Current - Continuous Drain (Id) @ 25°C | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | Through Hole | N-Channel | 175 °C | -55 °C | 4 V | 10 V | 40 mOhm | MOSFET (Metal Oxide) | IPAK TO-251-3 Short Leads TO-251AA | 2 V | 55 V | IPAK | 16 V | 28 A | 25 nC | 880 pF | 68 W |
