T347 Series

Catalog

CONN RCPT FMALE 7P SOLDER CUP

Part	Contact Finish - Mating	Shielding	Connector Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Shell Material	Color	Shell Size - Insert	Primary Material	Voltage Rating	Ingress Protection	Orientation	Number of Positions	Mounting Type	Fastening Type	Features

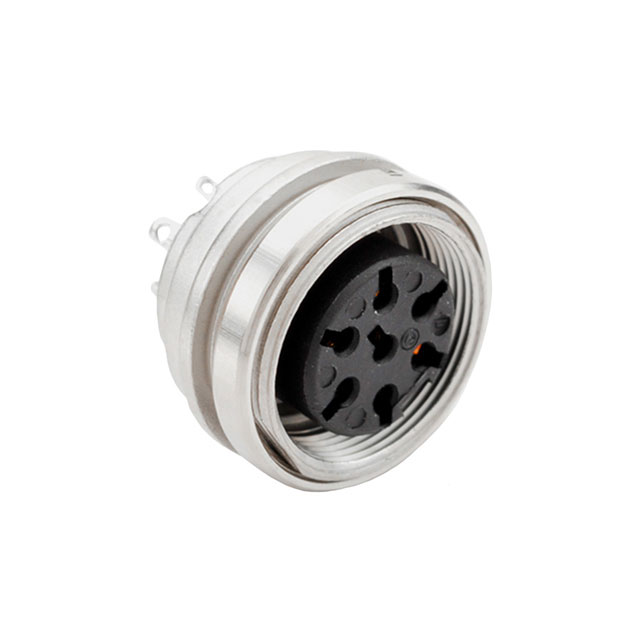

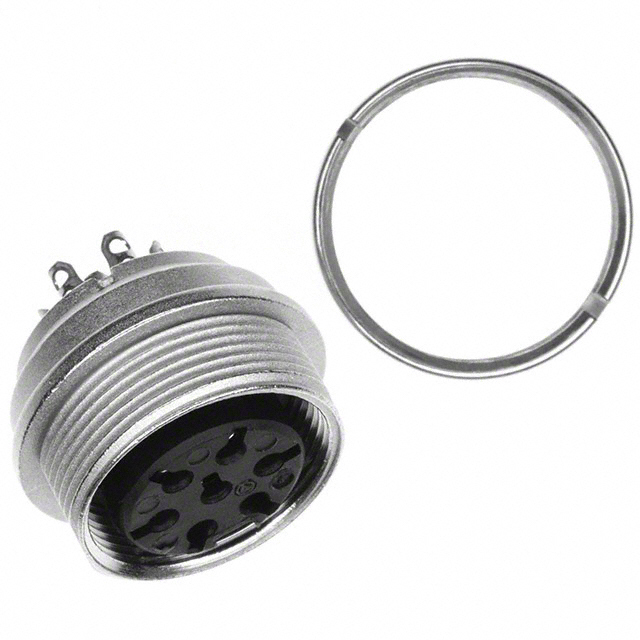

Amphenol Tuchel Industrial T3478100U	Silver	Shielded	Receptacle Female Sockets	7 A	-40 C	100 °C	Nickel	Die Cast	Silver	M16-7	Metal	250 V	IP40	Keyed	7	Panel Mount	Threaded

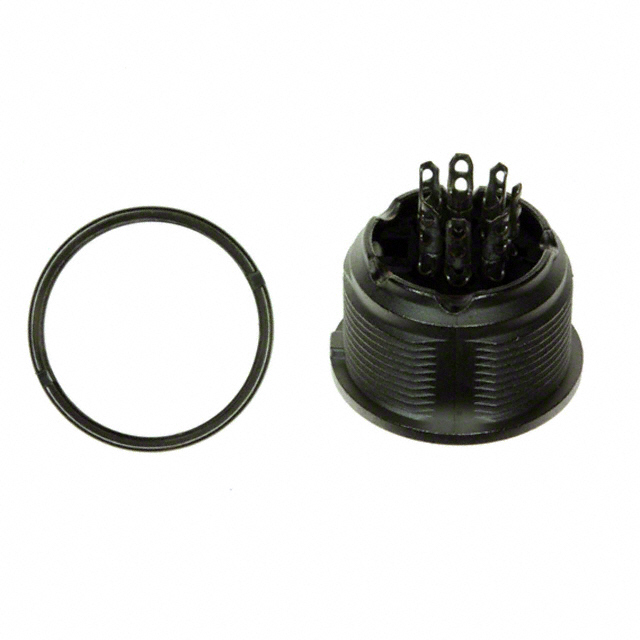

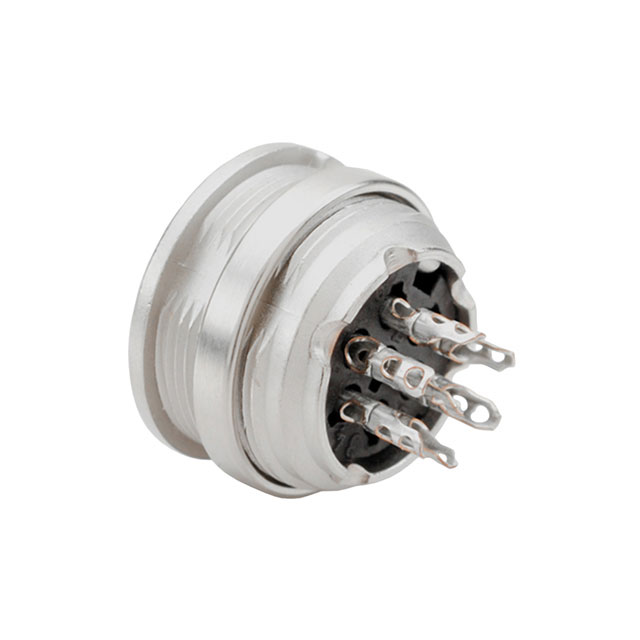

Amphenol Tuchel Industrial T3478000U	Silver	Shielded	Receptacle Female Sockets	7 A	-40 C	100 °C	Nickel	Die Cast	Silver	M16-7	Metal	250 V	IP40	Keyed	7	Panel Mount	Threaded

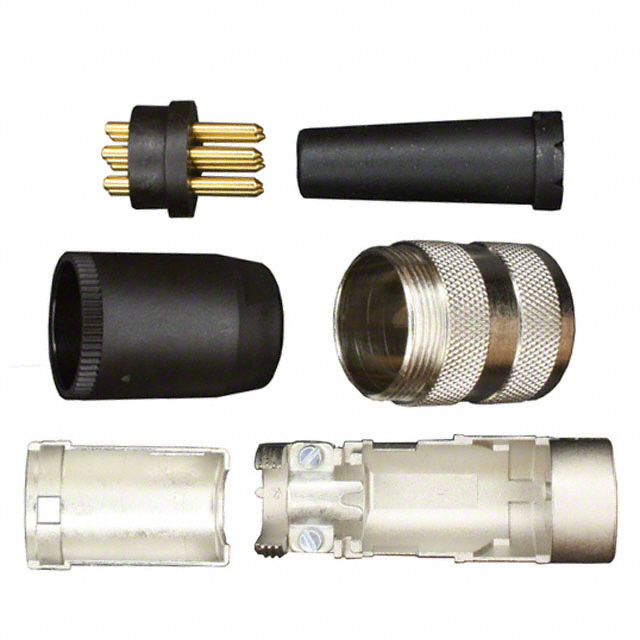

Amphenol Tuchel Industrial T3475018U	Gold	Shielded	Plug Male Pins	7 A	-40 C	100 °C	Nickel	Die Cast	Silver	M16-7	Metal	250 V	IP40	Keyed	7	Free Hanging (In-Line)	Threaded	Strain Relief

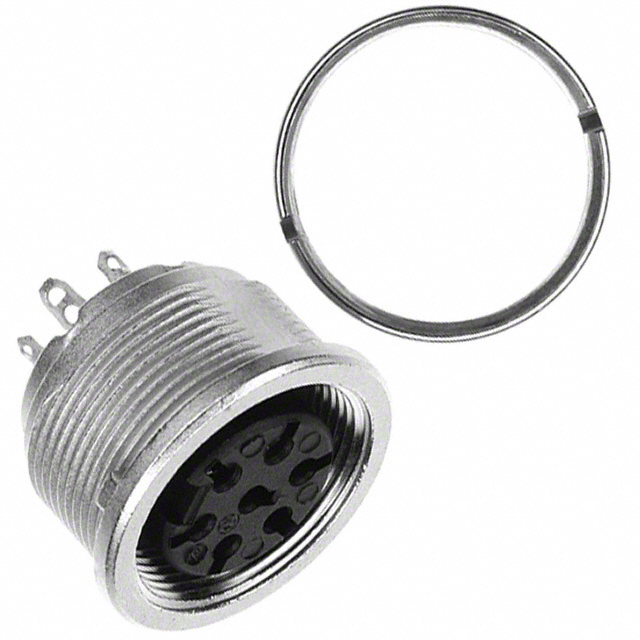

Amphenol Tuchel Industrial T3478018U	Gold	Shielded	Receptacle Female Sockets	7 A	-40 C	100 °C	Nickel	Die Cast	Silver	M16-7	Metal	250 V	IP40	Keyed	7	Panel Mount	Threaded

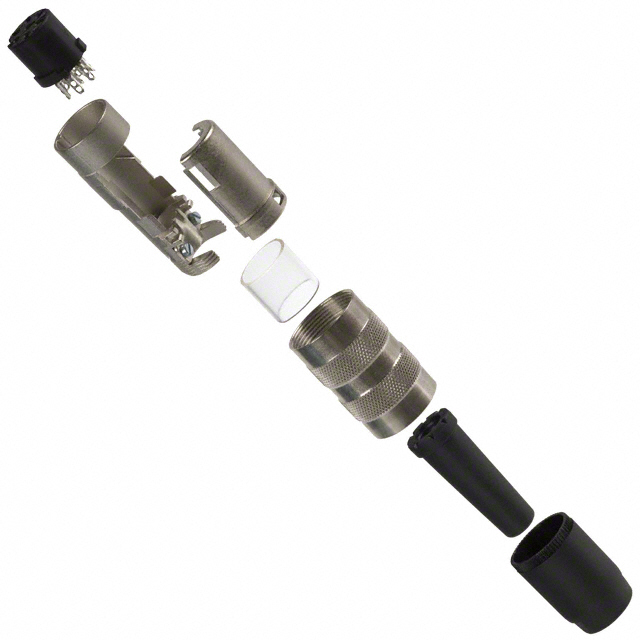

Amphenol Tuchel Industrial T3476001U	Silver	Shielded	Plug Female Sockets	7 A	-40 C	100 °C	Nickel	Die Cast	Silver	M16-7	Metal	250 V	IP40	Keyed	7	Free Hanging (In-Line)	Threaded	Strain Relief

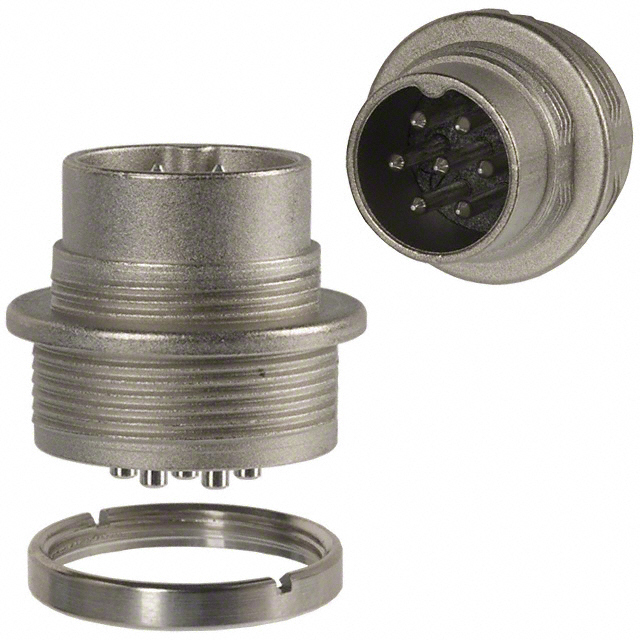

Amphenol Tuchel Industrial T3477000U	Silver	Shielded	Receptacle Male Pins	7 A	-40 C	100 °C	Nickel	Die Cast	Silver	M16-7	Metal	250 V	IP40	Keyed	7	Panel Mount	Threaded
