ADL Series
Manufacturer: TDK Corporation
Beta
⌘K

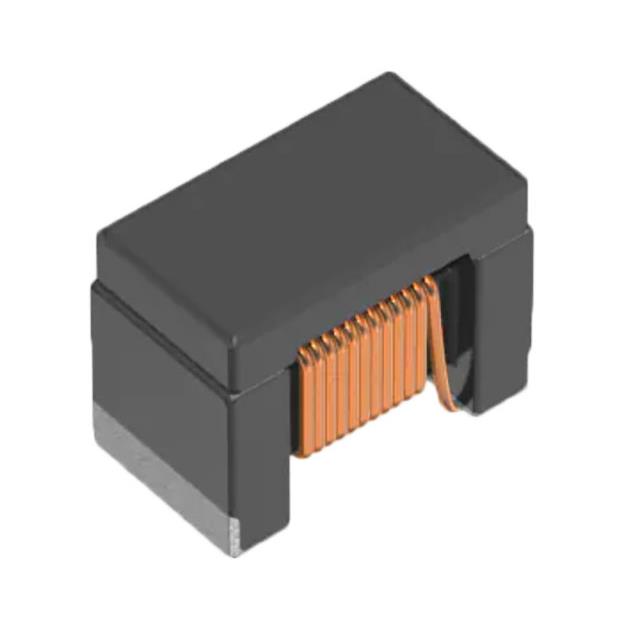

POWER INDUCTORS - SMD 2.2UH 0.5OHM 20% AEC-Q200
| Part | Current Rating (Amps) | Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Current - Saturation (Isat) | Material - Core | Package / Case | DC Resistance (DCR) [Max] | Ratings | Tolerance | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Frequency - Self Resonant | Inductance | Supplier Device Package | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Shielding | Inductance Frequency - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 0.55 A | Drum Core Wirewound | 1.75 mm | 0.069 " | 900 mA | Ferrite | 0805 | 500 mOhm | AEC-Q200 | 20 % | 125 °C | -40 C | Surface Mount | 360 MHz | 2.2 µH | 0805 | 0.049 " | 0.087 in | 1.25 mm | 2.2 mm | Unshielded | 1 MHz |
