TPS43061 Series
Manufacturer: Texas Instruments
Beta
⌘K
LOW IQ, SYNCHRONOUS BOOST CONTROLLER WITH WIDE INPUT VOLTAGE AND 5.5V GATE DRIVE FOR LOW QG NEXFETS
| Part | Mounting Type | Frequency - Switching [Min] | Frequency - Switching [Max] | Topology | Synchronous Rectifier | Control Features | Package / Case | Number of Outputs | Output Configuration | Operating Temperature [Max] | Operating Temperature [Min] | Clock Sync | Supplier Device Package | Output Phases | Output Type | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Function | Main Purpose | Regulator Topology | Outputs and Type | Outputs and Type | Frequency - Switching | Supplied Contents | Current - Output | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output | Utilized IC / Part | Board Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Surface Mount | 50 kHz | 1 MHz | Boost | Enable Frequency Control Power Good Soft Start | 16-WFQFN Exposed Pad | 1 | Positive | 150 °C | -40 °C | 16-WQFN (3x3) | 1 | Transistor Driver | 38 V | 4.5 V | Step-Up | ||||||||||||||

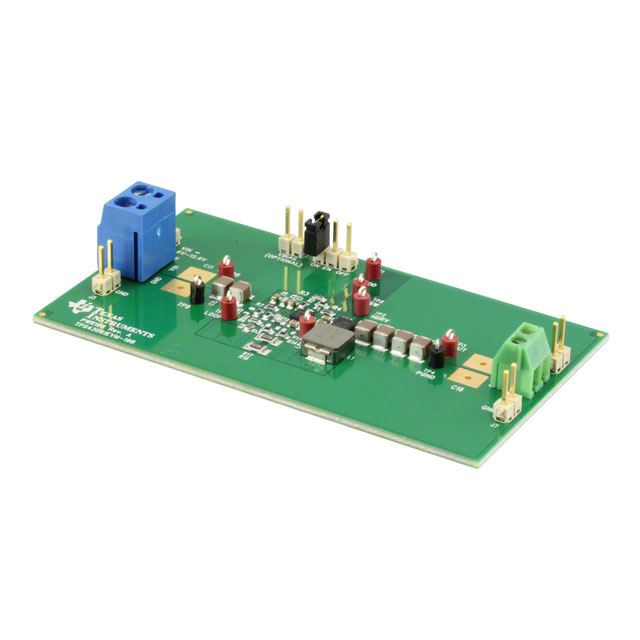

 Texas Instruments | DC/DC Step Up | Boost | Non-Isolated | 1 | 750 kHz | Board(s) | 2 A | 12.6 V | 6 V | 15 VDC | TPS43061 | Fully Populated | ||||||||||||||||||
 Texas Instruments | Surface Mount | 50 kHz | 1 MHz | Boost | Enable Frequency Control Power Good Soft Start | 16-WFQFN Exposed Pad | 1 | Positive | 150 °C | -40 °C | 16-WQFN (3x3) | 1 | Transistor Driver | 38 V | 4.5 V | Step-Up |
