VSKU91 Series

Catalog

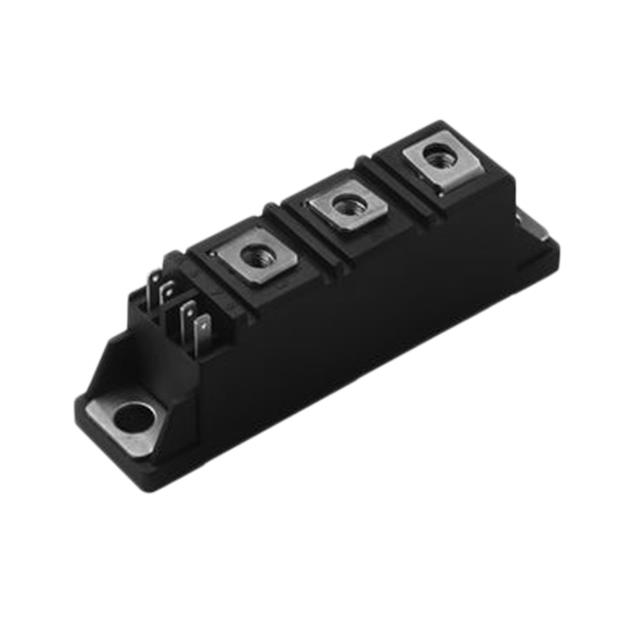

MODULE THYRISTOR 95A ADD-A-PAK

Part	Current - Gate Trigger (Igt) (Max) [Max]	Mounting Type	Current - On State (It (RMS)) (Max)	Number of SCRs, Diodes	Current - On State (It (AV)) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Off State	Structure
Vishay General Semiconductor - Diodes Division VS-VSKU91/10	150 mA	Chassis Mount	150 A	2 SCRs	95 A	250 mA	2.5 V	2000 A 2094 A	ADD-A-PAK (3 + 4)	-40 C	125 °C	1 kV	Common Cathode - All SCRs
Vishay General Semiconductor - Diodes Division VS-VSKU91/06	150 mA	Chassis Mount	150 A	2 SCRs	95 A	250 mA	2.5 V	2000 A 2094 A	ADD-A-PAK (3 + 4)	-40 C	125 °C	600 V	Common Cathode - All SCRs
