TUHS Series

Catalog

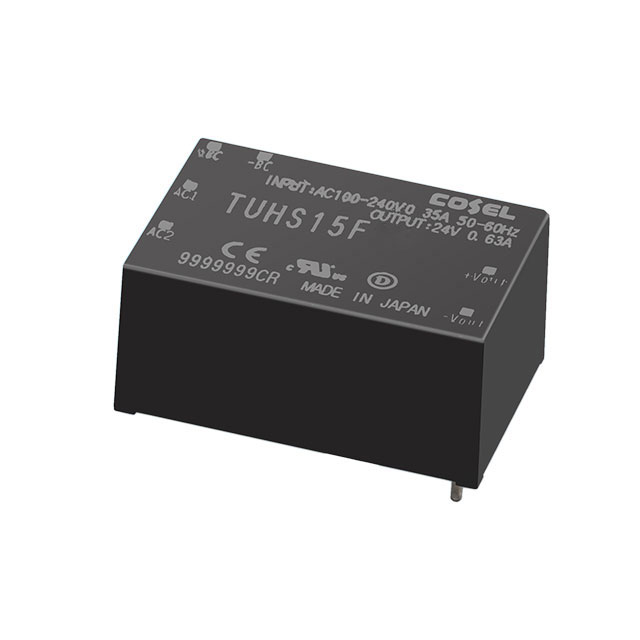

AC/DC POWER MODULES 15.12W 24V 0.63A ENCAPSULATE - PCB TH

Part	Line Regulation	Load Regulation	Features	Efficiency	Applications	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Mounting Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Power (Watts)	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]
Cosel USA, Inc. TUHS15F24	96 mV	150 mV	Universal Input	87 %	ITE (Commercial)	24 V	85 VAC 120 VDC	264 VAC 370 VDC	CE cURus	Through Hole	Enclosed	-40 °C	85 °C	6-DIP Module	15 W	1	33 mm	0.59 in	0.86 in	15 mm	21.8 mm	1.3 in	630 mA
Cosel USA, Inc. TUHS3F15	60 mV	120 mV	Universal Input	81 %	ITE (Commercial)	15 V	85 VAC 120 VDC	264 VAC 370 VDC	CE cURus	Through Hole	Enclosed	-40 °C	85 °C	6-DIP Module	3 W	1		12.7 mm	17.5 mm			28.7 mm	200 mA	0.5 in	0.69 "	1.13 "
Cosel USA, Inc. TUHS10F05	20 mV	40 mV	Universal Input		ITE (Commercial)	5 V	85 VAC 120 VDC	264 VAC 370 VDC	CE cURus	Through Hole	Enclosed	-40 °C	85 °C	6-DIP Module	10 W	1	33 mm	0.59 in	0.86 in	15 mm	21.8 mm	1.3 in	2 A
