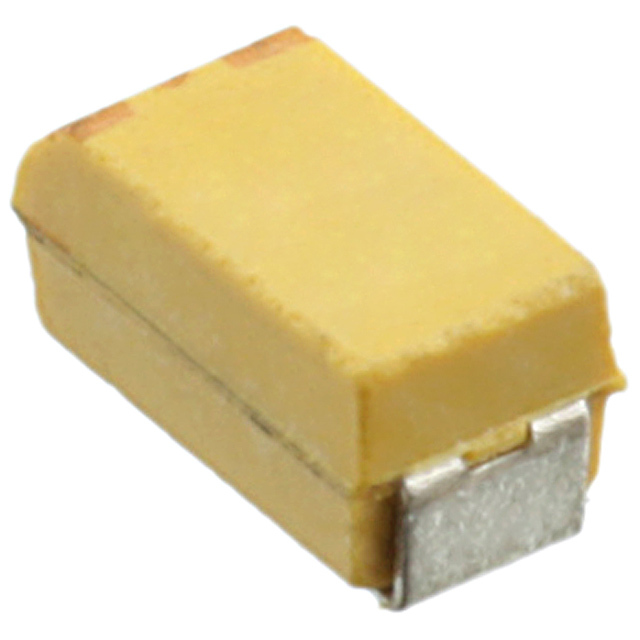

T494A Series
Manufacturer: KEMET
Beta
⌘K
SURFACE MOUNT TANTALUM CAPACITOR, 22 ΜF, 6.3 V, 1206 [3216 METRIC], ± 10%, 3 OHM, A
| Part | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Features | ESR (Equivalent Series Resistance) | Mounting Type | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Lifetime @ Temp. | Package / Case | Manufacturer Size Code | Capacitance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | Molded | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | General Purpose | 3 Ohm | Surface Mount | 10 % | -55 C | 125 °C | 2000 Hrs | 1206 (3216 Metric) | A | 22 µF | 1.8 mm | 0.071 in | 6.3 VDC |
 KEMET | Molded | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | General Purpose | 5.5 Ohm | Surface Mount | 10 % | -55 C | 125 °C | 2000 Hrs | 1206 (3216 Metric) | A | 1 µF | 1.8 mm | 0.071 in | 20 V |
 KEMET | Molded | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | General Purpose | 1.8 Ohm | Surface Mount | 10 % | -55 C | 125 °C | 2000 Hrs | 1206 (3216 Metric) | A | 10 µF | 1.8 mm | 0.071 in | 10 V |
KEMET | Molded | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | General Purpose | 4 Ohm | Surface Mount | 10 % | -55 C | 125 °C | 2000 Hrs | 1206 (3216 Metric) | A | 1 µF | 1.8 mm | 0.071 in | 25 VDC |
 KEMET | Molded | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | General Purpose | 10 Ohm | Surface Mount | 20 % | -55 C | 125 °C | 2000 Hrs | 1206 (3216 Metric) | A | 100000 pF | 1.8 mm | 0.071 in | 35 V |
 KEMET | Molded | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | General Purpose | 6 Ohm | Surface Mount | 10 % | -55 C | 125 °C | 2000 Hrs | 1206 (3216 Metric) | A | 0.33 µF | 1.8 mm | 0.071 in | 35 V |
KEMET | Molded | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | General Purpose | 3 Ohm | Surface Mount | 10 % | -55 C | 125 °C | 2000 Hrs | 1206 (3216 Metric) | A | 1500 nF | 1.8 mm | 0.071 in | 25 VDC |
KEMET | Molded | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | General Purpose | 10 Ohm | Surface Mount | 10 % | -55 C | 125 °C | 2000 Hrs | 1206 (3216 Metric) | A | 0.33 µF | 1.8 mm | 0.071 in | 25 VDC |
KEMET | Molded | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | General Purpose | 4 Ohm | Surface Mount | 10 % | -55 C | 125 °C | 2000 Hrs | 1206 (3216 Metric) | A | 33 ÁF | 1.8 mm | 0.071 in | 10 V |
KEMET | Molded | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | General Purpose | 10 Ohm | Surface Mount | 10 % | -55 C | 125 °C | 2000 Hrs | 1206 (3216 Metric) | A | 100000 pF | 1.8 mm | 0.071 in | 50 VDC |
