A221Y34V Series
Manufacturer: Nicomatic
Beta
⌘K
MALE 34POS STRAIGHT TRGH 1.27MM
| Part | Number of Positions | Contact Finish Thickness - Mating | Operating Temperature (Max) | Operating Temperature (Min) | Contact Shape | Contact Material | Number of Rows | Contact Type | Fastening Type | Contact Finish - Post | Style | Features | Pitch - Mating | Voltage Rating | Mounting Type | Termination | Connector Type | Shrouding | Insulation Material | Number of Positions Loaded | Row Spacing - Mating | Material Flammability Rating | Insulation Color | Current Rating | Contact Finish - Mating | Insulation Height | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

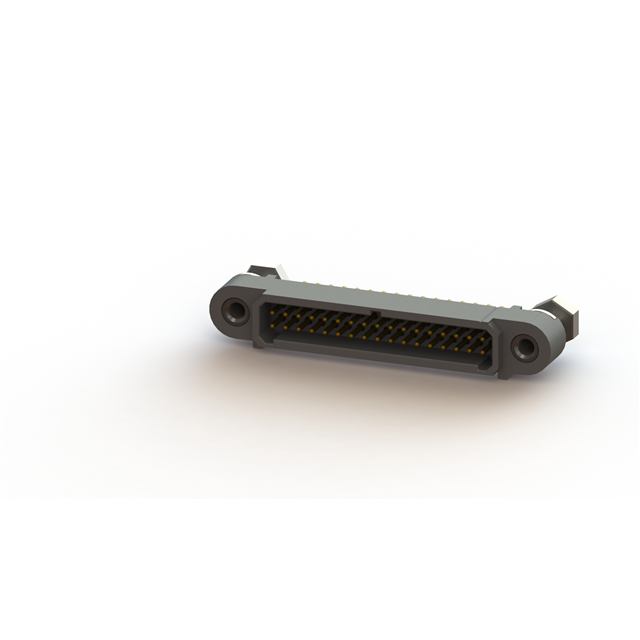

 Nicomatic | 34 | 5.9 µin | 200 °C | -65 °C | Circular | Copper Alloy | 2 | Male Pin | Screw Lock | Gold | Board Board or Cable | Mating Flange Mounting Flange Mounting Hardware | 0.039 in | 600 V | Through Hole | Solder | Header | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | All | 0.039 in | UL94 V-0 | Black | 2.5 A | Gold | 0.161 in | 5.9 µin |

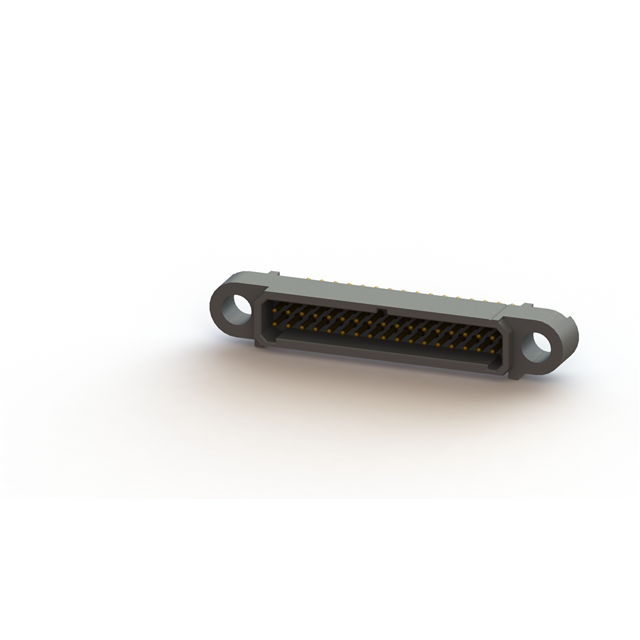

 Nicomatic | 34 | 5.9 µin | 200 °C | -65 °C | Circular | Copper Alloy | 2 | Male Pin | Push-Pull | Gold | Board Board or Cable | Mating Flange | 0.039 in | 600 V | Through Hole | Solder | Header | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | All | 0.039 in | UL94 V-0 | Black | 2.5 A | Gold | 0.161 in | 5.9 µin |
