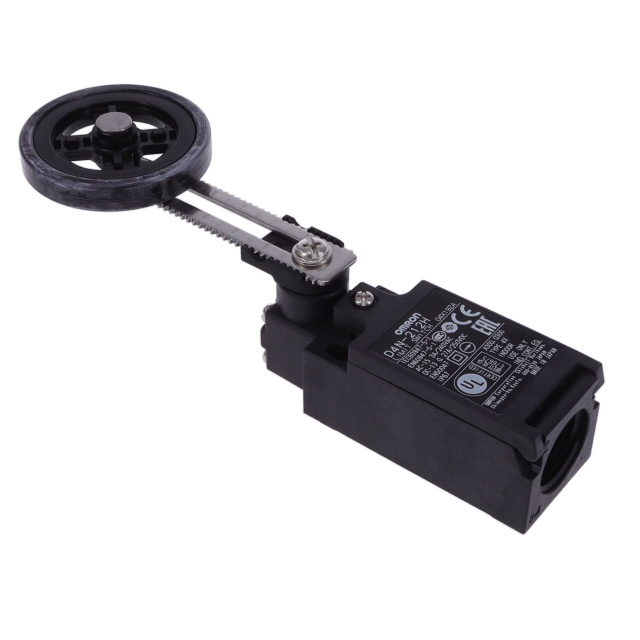

D4N-212 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SNAP ACTION DPST 3A 240V
| Part | Mechanical Life | Differential Travel | Current Rating (Amps) | Features | Release Force | Pretravel | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Electrical Life | Operating Force | Voltage Rating - DC | Ingress Protection | Switch Function | Actuator Type | Voltage Rating - AC | Mounting Type | Overtravel | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 15000000 Cycles | 14 ° | 3 A 270 mA | Metal Lever Resin Roller | 41 gf | 18 ° | 70 °C | -30 ░C | Screw Terminal | 300000 Cycles | 459 gf | 250 V | IP67 - Dust Tight Waterproof | Off-Mom On-Mom | Side Rotary Adjustable Roller | 240 V | Chassis Mount | 40 ° | DPST-NO/NC |
 Omron Electronics Inc-EMC Div | 15000000 Cycles | 14 ° | 3 A 270 mA | Metal Lever Rubber Roller | 41 gf | 18 ° | 70 °C | -30 ░C | Screw Terminal | 300000 Cycles | 459 gf | 250 V | IP67 - Dust Tight Waterproof | Off-Mom On-Mom | Side Rotary Adjustable Roller | 240 V | Chassis Mount | 40 ° | DPST-NO/NC |
