34156 Series

Catalog

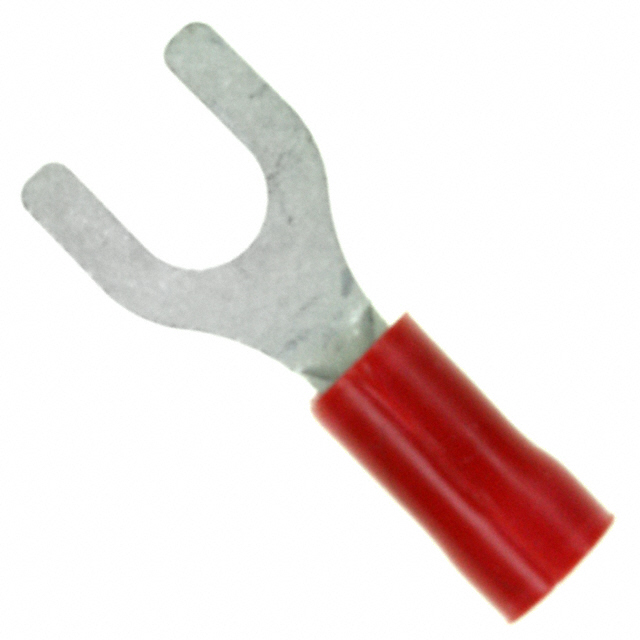

CONN SPADE TERM 16-22AWG #10 RED

Part	Length - Ring Center to Termination	Length - Ring Center to Termination [x]	Termination	Stud/Tab Size	Length - Termination	Length - Termination	Contact Material	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Mounting Type	Features	Terminal Type	Length - Overall [x]	Length - Overall [x]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges [x]	Width - Outer Edges [x]	Insulation	Color	Material - Insulation
TE Connectivity Raychem Cable Protection 8-34156-1	7.92 mm	0.312 in	Crimp	10 Stud	10.57 mm	0.416 in	Copper	0.14 in	0.105 in	3.56 mm	2.67 mm	Free Hanging (In-Line)	Serrated Termination	Standard	23.37 mm	0.92 "	5 mm	0.197 in	22 AWG	16 AWG	0.375 in	9.53 mm	Insulated	Red	Poly-Vinyl Chloride (PVC)
