FB15AN Series

Catalog

SWITCH PUSH SPST-NO 0.4VA 28V

Part	Electrical Life	Mechanical Life	Features	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Panel Cutout Dimensions [diameter]	Circuit	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Actuator Marking	Voltage Rating - AC	Mounting Type	Color - Actuator/Cap	Type	Switch Function

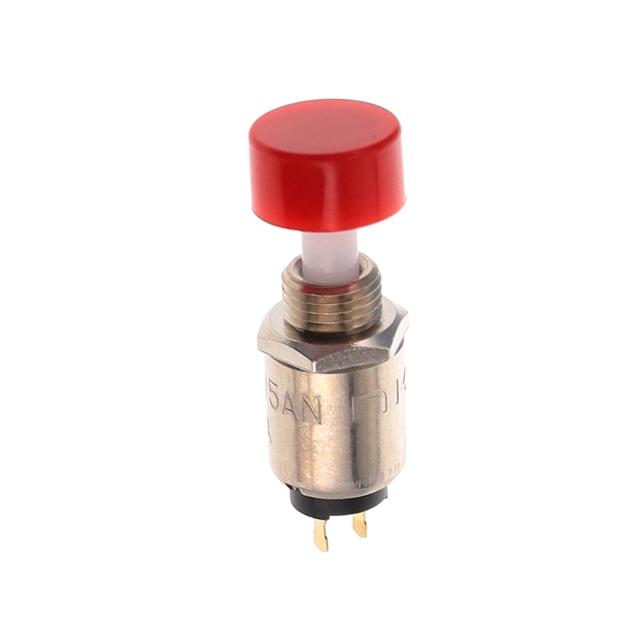

NKK Switches FB15ANEP4-HC	50000 Cycles	50000 Cycles	Epoxy Sealed Terminals	70 °C	-10 °C	Solder Turret	5.3 mm	SPST-NO	28 V	Button Round	0.4 VA	No Marking	28 V	Panel Mount Rear	Red	Standard	Off-Mom

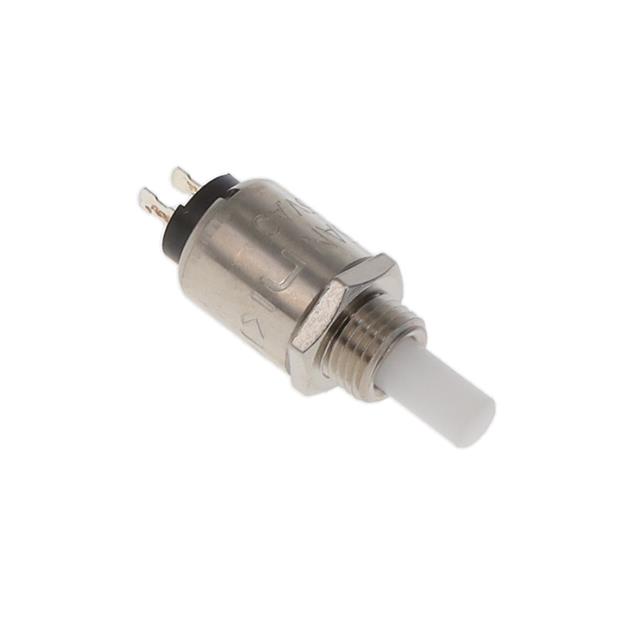

NKK Switches FB15ANEP2/U	50000 Cycles	50000 Cycles	Epoxy Sealed Terminals	70 °C	-10 °C	Solder Turret	5.3 mm	SPST-NO		Plunger for Cap	500 mA	No Marking	125 V	Panel Mount Rear	White	Standard	Off-Mom

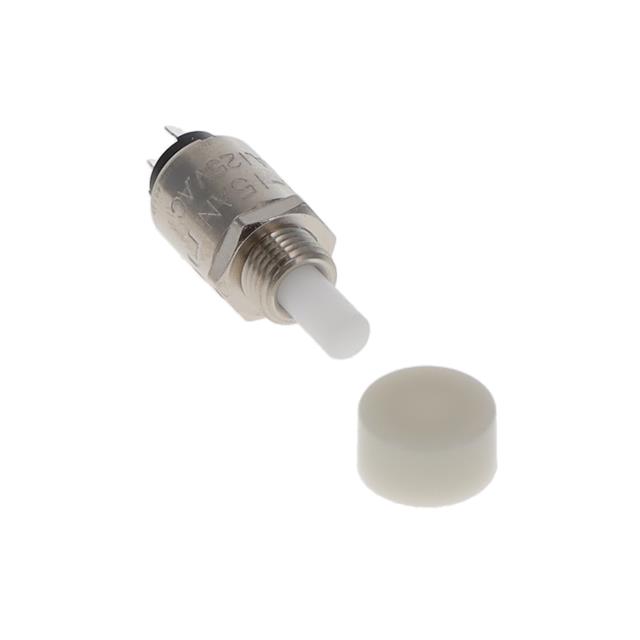

NKK Switches FB15ANEP2-HB	50000 Cycles	50000 Cycles	Epoxy Sealed Terminals	70 °C	-10 °C	Solder Turret	5.3 mm	SPST-NO		Button Round	500 mA	No Marking	125 V	Panel Mount Rear	White	Standard	Off-Mom

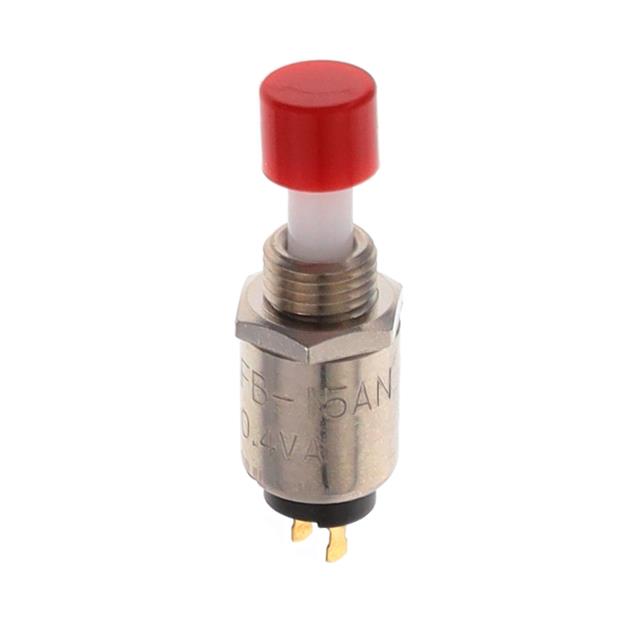

NKK Switches FB15ANEP4-FC	50000 Cycles	50000 Cycles	Epoxy Sealed Terminals	70 °C	-10 °C	Solder Turret	5.3 mm	SPST-NO	28 V	Button Round	0.4 VA	No Marking	28 V	Panel Mount Rear	Red	Standard	Off-Mom

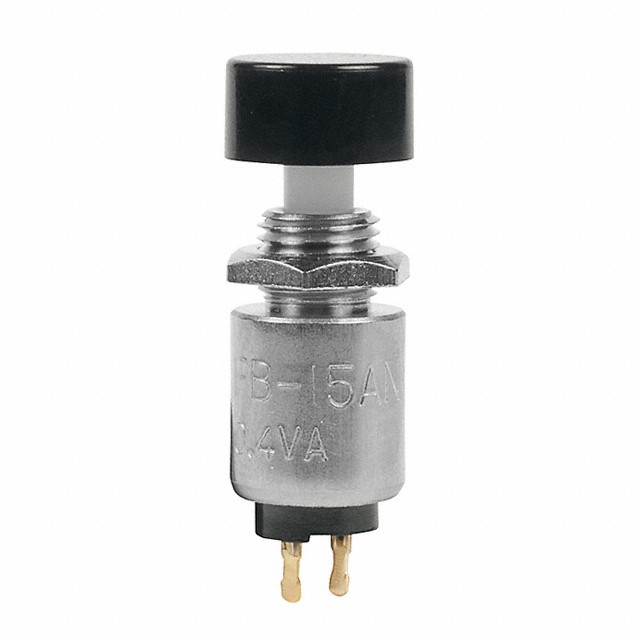

NKK Switches FB15ANEP4-HA	50000 Cycles	50000 Cycles	Epoxy Sealed Terminals	70 °C	-10 °C	Solder Turret	5.3 mm	SPST-NO	28 V	Button Round	0.4 VA	No Marking	28 V	Panel Mount Rear	Black	Standard	Off-Mom

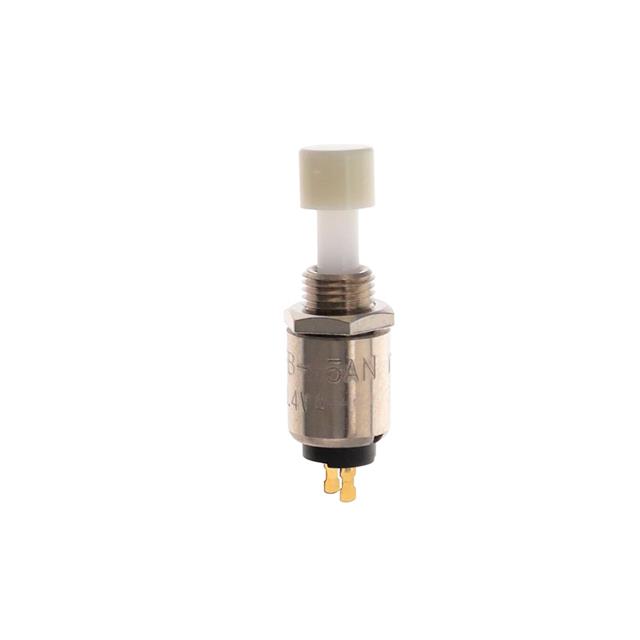

NKK Switches FB15ANEP4-FB	50000 Cycles	50000 Cycles	Epoxy Sealed Terminals	70 °C	-10 °C	Solder Turret	5.3 mm	SPST-NO	28 V	Button Round	0.4 VA	No Marking	28 V	Panel Mount Rear	White	Standard	Off-Mom
NKK Switches FB15ANEP2-FC	50000 Cycles	50000 Cycles	Epoxy Sealed Terminals	70 °C	-10 °C	Solder Turret	5.3 mm	SPST-NO		Button Round	500 mA	No Marking	125 V	Panel Mount Rear	Red	Standard	Off-Mom
NKK Switches FB15ANEP2-HC	50000 Cycles	50000 Cycles	Epoxy Sealed Terminals	70 °C	-10 °C	Solder Turret	5.3 mm	SPST-NO		Button Round	500 mA	No Marking	125 V	Panel Mount Rear	Red	Standard	Off-Mom

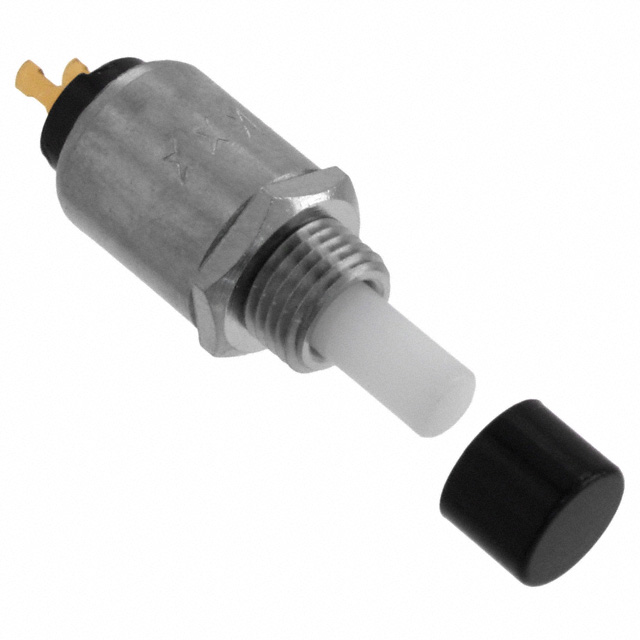

NKK Switches FB15ANEP4-FA	50000 Cycles	50000 Cycles	Epoxy Sealed Terminals	70 °C	-10 °C	Solder Turret	5.3 mm	SPST-NO	28 V	Button Round	0.4 VA	No Marking	28 V	Panel Mount Rear	Black	Standard	Off-Mom
