SK15AE Series

Catalog

KEYLOCK SWITCH, ANTISTATIC SEALED, ON-ON-ON-ON-ON, SP5T, SK SERIES, 5 POSITION, PC PIN, RIGHT ANGLE

Part	Mechanical Life	Electrical Life	Contact Material	Mounting Type	Contact Timing	Current Rating (Amps)	Features	Voltage Rating - DC	Number of Positions	Actuator Type	Angle of Throw	Contact Finish	Key Removable Positions	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Circuit	Termination Style

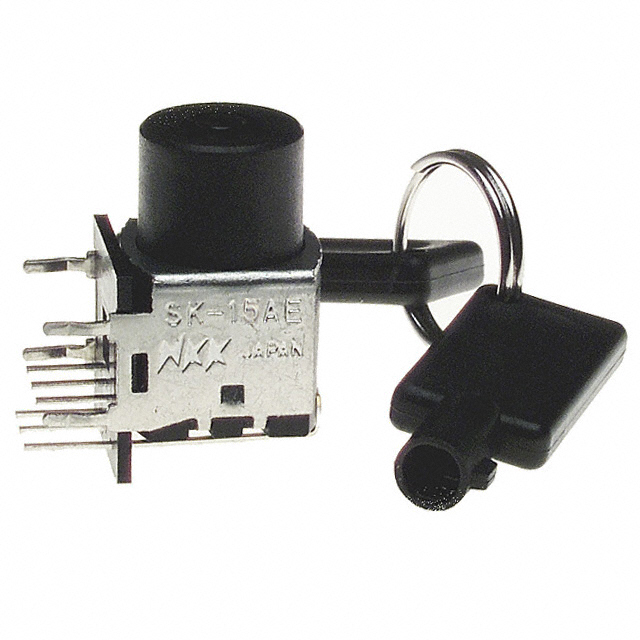

NKK Switches SK15AEG30	30000 Steps	20000 Steps	Beryllium Copper	Through Hole	Non-Shorting (BBM)	0.4 VA	Antistatic Process Sealed	28 V	5	Tubular Key	45 °	Gold	All	28 V	-25 °C	70 °C	On-On-On-On-On	SP5T	PC Pin

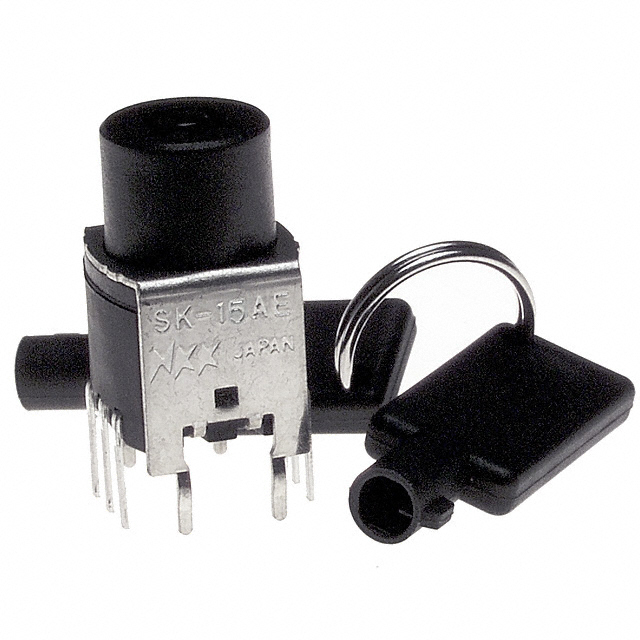

NKK Switches SK15AEG13	30000 Steps	20000 Steps	Beryllium Copper	Through Hole	Non-Shorting (BBM)	0.4 VA	Antistatic Process Sealed	28 V	5	Tubular Key	45 °	Gold	All	28 V	-25 °C	70 °C	On-On-On-On-On	SP5T	PC Pin
