RV-S_D Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W DC/DC MIN 6KV UNREG 24VIN 24VOUT

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Efficiency	Type	Power (Watts)	Features	Voltage - Isolation	Mounting Type	Applications	Voltage - Output 1	Number of Outputs	Package / Case	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 2	Current - Output (Max)

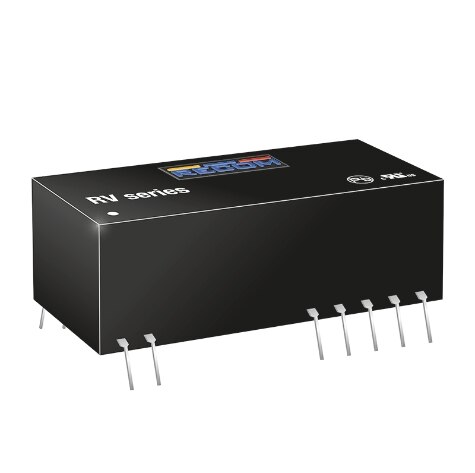

Recom Power RV-2424S	85 °C	-40 C	83 mA	26.4 V	75 %	Isolated Module	2 W	SCP	6000 VDC	Through Hole	ITE (Commercial) Medical	24 V	1	24-DIP Module 14 Leads	21.6 V	0.45 in	0.58 in	1.27 in	32.4 mm	14.7 mm	11.4 mm
Recom Power RV-2405D	85 °C	-40 C		26.4 V	75 %	Isolated Module	2 W	SCP	6000 VDC	Through Hole	ITE (Commercial) Medical	5 V	2	24-DIP Module 14 Leads	21.6 V	0.45 in	0.58 in	1.27 in	32.4 mm	14.7 mm	11.4 mm	-5 V
Recom Power RV-1205S	85 °C	-40 C	400 mA	13.2 V	75 %	Isolated Module	2 W	SCP	6000 VDC	Through Hole	ITE (Commercial) Medical	5 V	1	24-DIP Module 14 Leads	10.8 V	0.45 in	0.58 in	1.27 in	32.4 mm	14.7 mm	11.4 mm
Recom Power RV-0909S/P	85 °C	-40 C	222 mA	9.9 V	75 %	Isolated Module	2 W	SCP	6000 VDC	Through Hole	ITE (Commercial) Medical	9 V	1	24-DIP Module 14 Leads	8.1 V	0.45 in	0.58 in	1.27 in	32.4 mm	14.7 mm	11.4 mm
Recom Power RV-123.3D/P	85 °C	-40 C	0.3 A	13.2 V	75 %	Isolated Module	2 W	SCP	6000 VDC	Through Hole	ITE (Commercial) Medical	3.3 V	2	24-DIP Module 14 Leads	10.8 V	0.45 in	0.58 in	1.27 in	32.4 mm	14.7 mm	11.4 mm	-3.3 V
Recom Power RV-0524D	85 °C	-40 C		5.5 V	75 %	Isolated Module	2 W	SCP	6000 VDC	Through Hole	ITE (Commercial) Medical	24 V	2	24-DIP Module 14 Leads	4.5 V	0.45 in	0.58 in	1.27 in	32.4 mm	14.7 mm	11.4 mm	-24 V	42 mA
Recom Power RV-1212S/P	85 °C	-40 C	167 mA	13.2 V	75 %	Isolated Module	2 W	SCP	6000 VDC	Through Hole	ITE (Commercial) Medical	12 V	1	24-DIP Module 14 Leads	10.8 V	0.45 in	0.58 in	1.27 in	32.4 mm	14.7 mm	11.4 mm
Recom Power RV-0915S	85 °C	-40 C	133 mA	9.9 V	75 %	Isolated Module	2 W	SCP	6000 VDC	Through Hole	ITE (Commercial) Medical	15 V	1	24-DIP Module 14 Leads	8.1 V	0.45 in	0.58 in	1.27 in	32.4 mm	14.7 mm	11.4 mm
Recom Power RV-0909D	85 °C	-40 C		9.9 V	75 %	Isolated Module	2 W	SCP	6000 VDC	Through Hole	ITE (Commercial) Medical	9 V	2	24-DIP Module 14 Leads	8.1 V	0.45 in	0.58 in	1.27 in	32.4 mm	14.7 mm	11.4 mm	-9 V	111 mA
Recom Power RV-1209S	85 °C	-40 C	222 mA	13.2 V	75 %	Isolated Module	2 W	SCP	6000 VDC	Through Hole	ITE (Commercial) Medical	9 V	1	24-DIP Module 14 Leads	10.8 V	0.45 in	0.58 in	1.27 in	32.4 mm	14.7 mm	11.4 mm
