PM1 Series

Catalog

RING TONGUE TERMINAL, M3, #5, 18 AWG, 1 MM², PM SERIES

Part	Contact Finish	Stud/Tab Size	Mounting Type	Insulation	Features	Termination	Thickness	Thickness	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges	Width - Outer Edges	Terminal Type	Tongue Inside Opening [diameter]	Tongue Inside Opening [diameter]	Length - Overall [x]	Length - Overall [x]

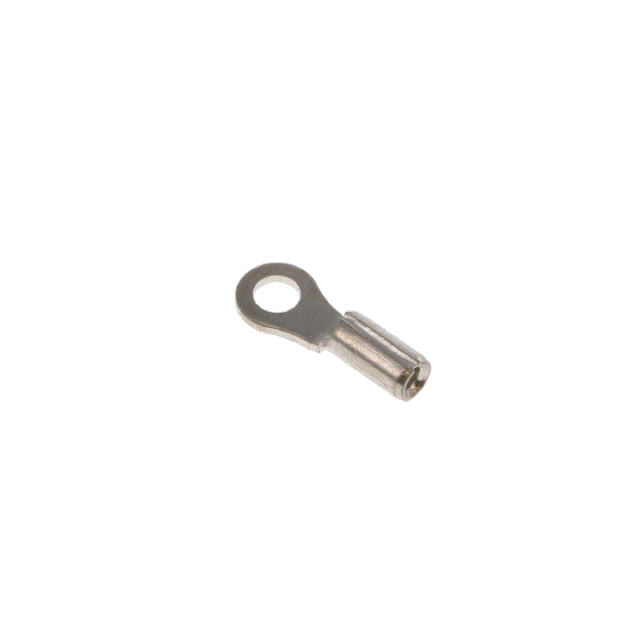

Panduit Corp PM1-3R-C	Tin	M3 Stud	Free Hanging (In-Line)	Non-Insulated	Brazed Seam Serrated Termination	Crimp	0.81 mm	0.032 in	Copper	22 AWG	17.5 AWG	5.84 mm	0.23 in	Circular
Panduit Corp PM1-3F-C	Tin	M3 Stud	Free Hanging (In-Line)	Non-Insulated	Brazed Seam Serrated Termination	Crimp			Copper	22 AWG	16 AWG	5.84 mm	0.23 in	Standard	3.3 mm	0.13 in	0.63 in	16 mm
