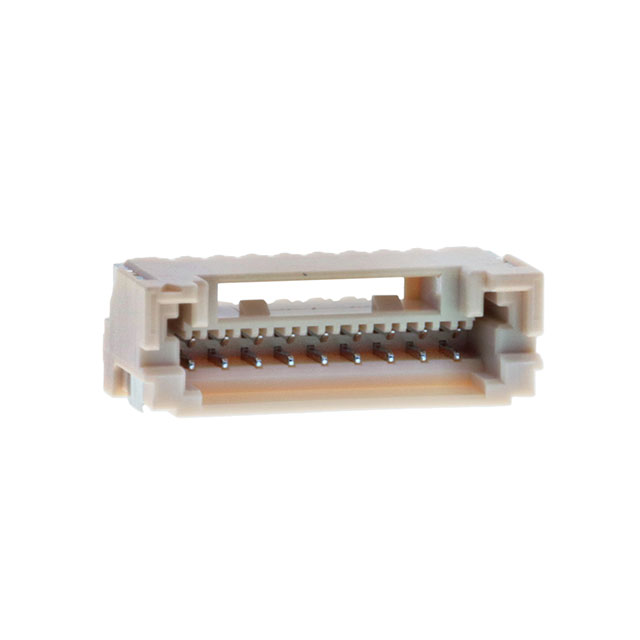

SM09B-ZE Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 9POS 1.5MM
| Part | Voltage Rating | Material Flammability Rating | Insulation Material | Insulation Color | Insulation Height [z] | Insulation Height [z] | Operating Temperature [Max] | Operating Temperature [Min] | Shrouding | Number of Positions Loaded | Features | Termination | Contact Material | Contact Shape | Fastening Type | Style | Current Rating (Amps) | Connector Type | Mounting Type | Number of Positions | Contact Finish - Post | Contact Type | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 100 V | UL94 V-0 | Nylon Polyamide (PA) | Natural | 0.228 " | 5.8 mm | 85 °C | -25 °C | Shrouded - 4 Wall | All | Solder Retention | Solder | Copper Alloy | Rectangular | Locking Ramp | Board to Cable/Wire | 2 A | Header | Right Angle Surface Mount | 9 | Tin | Outer Shroud Contact | 1 |
