MMF Series

Manufacturer: YAGEO

Catalog

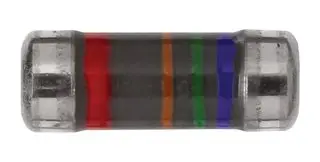

MELF RESISTORS 10 OHMS 0.4W 1% 50PPM AEC-Q200

Part	Package / Case	Resistance	Supplier Device Package	Composition	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Power (Watts) [Min]	Power (Watts) [Max]	Number of Terminations [custom]	Temperature Coefficient	Tolerance	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [y]
YAGEO MMF204FRE10R	MELF 0204	10 Ohms	MELF	Metal Film	155 C	-55 C	0.4 W	2 W	5 W	2	50 ppm/░C	1 %	0.138 in 1.4 mm	0.055 in	3.5 mm
YAGEO MMF204FRE18R	MELF 0204	18 Ohms	MELF	Metal Film	155 C	-55 C	0.4 W	2 W	5 W	2	50 ppm/░C	1 %	0.138 in 1.4 mm	0.055 in	3.5 mm
YAGEO MMF204BRC7K5	MELF 0204	7.5 kOhms	MELF	Metal Film	155 C	-55 C	0.4 W	2 W	5 W	2	15 ppm/°C	0.1 %	0.138 in 1.4 mm	0.055 in	3.5 mm
YAGEO MMF204BRC3K9	MELF 0204	3.9 kOhms	MELF	Metal Film	155 C	-55 C	0.4 W	2 W	5 W	2	15 ppm/°C	0.1 %	0.138 in 1.4 mm	0.055 in	3.5 mm
YAGEO MMF204BRC51K	MELF 0204	51 kOhms	MELF	Metal Film	155 C	-55 C	0.4 W	2 W	5 W	2	15 ppm/°C	0.1 %	0.138 in 1.4 mm	0.055 in	3.5 mm
YAGEO MMF204FRE3K3	MELF 0204	3300 Ohms	MELF	Metal Film	155 C	-55 C	0.4 W	2 W	5 W	2	50 ppm/░C	1 %	0.138 in 1.4 mm	0.055 in	3.5 mm
YAGEO MMF204BRC2K2	MELF 0204	2200 Ohms	MELF	Metal Film	155 C	-55 C	0.4 W	2 W	5 W	2	15 ppm/°C	0.1 %	0.138 in 1.4 mm	0.055 in	3.5 mm
