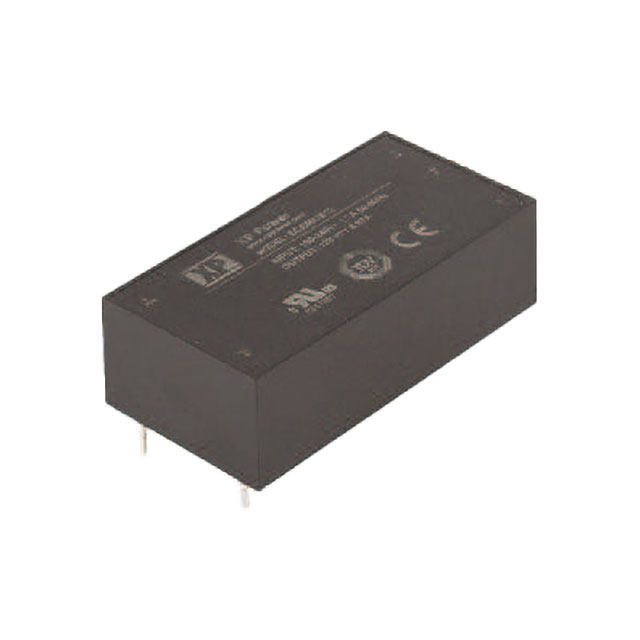

ECE80 Series

Manufacturer: XP Power

Catalog

AC/DC CONVERTER 12V 80W

Part	Standard Number	Power (Watts)	Features	Efficiency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Mounting Type	Current - Output 1	Applications	Approval Agency	Number of Outputs	Type	Voltage - Isolation	Voltage - Output 1	For Use With/Related Products	Accessory Type	Current - Output (Max) [Max]	Input Type	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Voltage - Output 1 [custom]
XP Power ECE80US12-S	62368-1	80 W	DC Input Capable Universal Input	88 %	113 mm	4.45 in	1.87 "	47.5 mm	28.5 mm	1.12 "	Chassis Mount	6.67 A	ITE (Commercial)	CE	1	Enclosed	3000 V	12 V
XP Power ECE80 DIN CLIP																			ECE80 DIN Rail	DIN Rail Clip
XP Power ECE80US15-SD	62368-1	80 W	Universal Input	88 %	113 mm	4.45 in	1.87 "	47.5 mm	28.5 mm	1.12 "			ITE (Commercial)	CB TUV UL	1		3000 V	15 V			5.33 A	AC	264 VAC	85 VAC

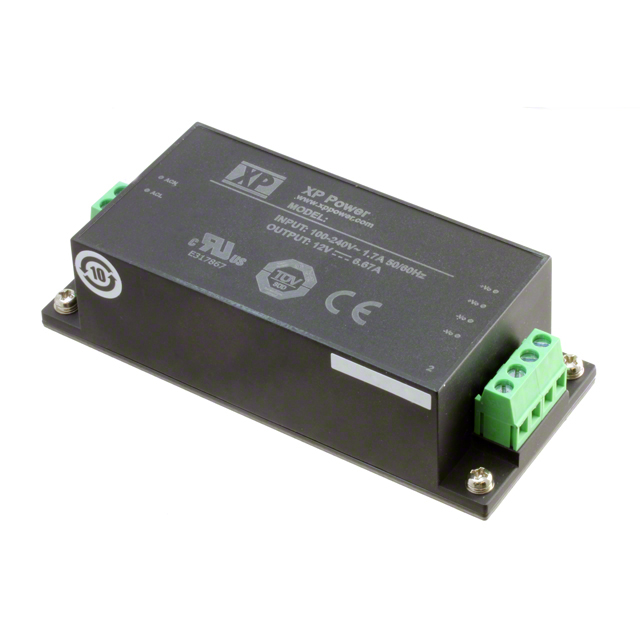

XP Power ECE80US12-SD	62368-1	80 W	Universal Input	88 %	113 mm	4.45 in	1.87 "	47.5 mm	28.5 mm	1.12 "			ITE (Commercial)	CB TUV UL	1		3000 V	12 V			6.67 A	AC	264 VAC	85 VAC
XP Power ECE80US24-SD	62368-1	80 W	Universal Input	87 %	113 mm	4.45 in	1.87 "	47.5 mm	28.5 mm	1.12 "			ITE (Commercial)	CB TUV UL	1		3000 V	24 V			3.33 A	AC	264 VAC	85 VAC
XP Power ECE80US24-S	62368-1	80 W	DC Input Capable Universal Input	87 %	113 mm	4.45 in	1.87 "	47.5 mm	28.5 mm	1.12 "	Chassis Mount	3.33 A	ITE (Commercial)	CE	1	Enclosed	3000 V	24 V
XP Power ECE80US36-S	62368-1	80 W	DC Input Capable Universal Input	87 %	113 mm	4.45 in	1.87 "	47.5 mm	28.5 mm	1.12 "	Chassis Mount	2.22 A	ITE (Commercial)	CE	1	Enclosed	3000 V								36 V
XP Power ECE80US48-S	62368-1	80 W	DC Input Capable Universal Input	87 %	113 mm	4.45 in	1.87 "	47.5 mm	28.5 mm	1.12 "	Chassis Mount	1.67 A	ITE (Commercial)	CE	1	Enclosed	3000 V	48 V
XP Power ECE80US15-S	62368-1	80 W	DC Input Capable Universal Input	88 %	113 mm	4.45 in	1.87 "	47.5 mm	28.5 mm	1.12 "	Chassis Mount	5.33 A	ITE (Commercial)	CE	1	Enclosed	3000 V	15 V
