SBC3 Series

Manufacturer: KEMET

Catalog

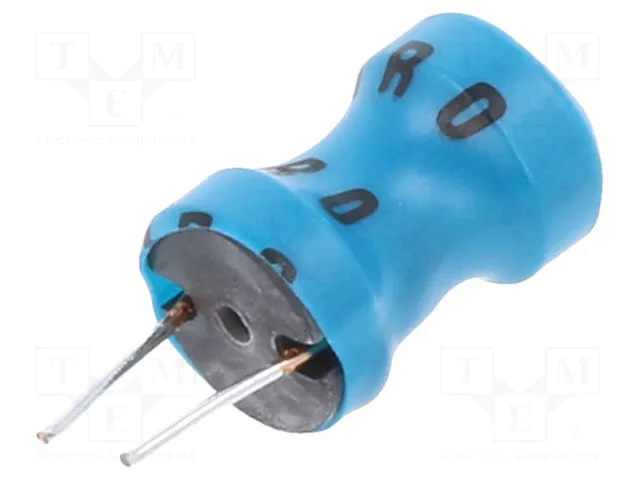

POWER CHOKE UNSHIELDED WIREWOUND 1.5UH 20% 10KHZ FERRITE 8.8A 0.01OHM DCR RDL BULK

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Mounting Type	Material - Core	DC Resistance (DCR) [Max]	Type	Inductance Frequency - Test	Shielding	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Package / Case	Current Rating (Amps)	Height - Seated (Max) [Max]	Current - Saturation (Isat)	DC Resistance (DCR)
KEMET SBC3-1R5-632	9 mm	0.354 in	1.5 µH	Through Hole	Ferrite	10 mOhm	Drum Core Wirewound	10 kHz	Unshielded	9 mm	0.354 in	-20 ░C	105 ░C	20 %	Radial Vertical Cylinder	6.3 A
KEMET SBC3-102-281	0.453 in		1 mH	Through Hole	Ferrite	2.37 Ohm	Drum Core Wirewound	10 kHz	Unshielded	9 mm	0.354 in	-20 ░C	105 ░C	10 %	Radial Vertical Cylinder	0.28 A	11.5 mm	310 mA
KEMET SBC3-331-551	0.453 in		330 µH	Through Hole	Ferrite	720 mOhm	Drum Core Wirewound	10 kHz	Unshielded	9 mm	0.354 in	-20 ░C	105 ░C	10 %	Radial Vertical Cylinder	0.55 A	11.5 mm	530 mA
KEMET SBC3-6R8-392	9 mm	0.354 in	6.8 µH	Through Hole	Ferrite	30 mOhm	Drum Core Wirewound	10 kHz	Unshielded	9 mm	0.354 in	-20 ░C	105 ░C	20 %	Radial Vertical Cylinder	3.9 A		4 A
KEMET SBC3-471-491	0.453 in		470 µH	Through Hole	Ferrite	1.02 Ohm	Drum Core Wirewound	10 kHz	Unshielded	9 mm	0.354 in	-20 ░C	105 ░C	10 %	Radial Vertical Cylinder	490 mA	11.5 mm	460 mA
KEMET SBC3-222-191	0.453 in		2.2 mH	Through Hole	Ferrite		Drum Core Wirewound	10 kHz	Unshielded	9 mm	0.354 in	-20 ░C	105 ░C	10 %	Radial Vertical Cylinder	190 mA	11.5 mm	210 mA	5.62 Ohm
KEMET SBC3-100-362	9 mm	0.354 in	10 µH	Through Hole	Ferrite	30 mOhm	Drum Core Wirewound	10 kHz	Unshielded	9 mm	0.354 in	-20 ░C	105 ░C	20 %	Radial Vertical Cylinder	3.6 A		3 A
KEMET SBC3-122-281	0.453 in		1200 µH	Through Hole	Ferrite	2.7 Ohm	Drum Core Wirewound	10 kHz	Unshielded	9 mm	0.354 in	-20 ░C	105 ░C	10 %	Radial Vertical Cylinder	0.28 A	11.5 mm	280 mA
KEMET SBC3-151-791	9 mm	0.354 in	150 µH	Through Hole	Ferrite	360 mOhm	Drum Core Wirewound	10 kHz	Unshielded	9 mm	0.354 in	-20 ░C	105 ░C	10 %	Radial Vertical Cylinder			810 mA
KEMET SBC3-1R2-752	9 mm	0.354 in	1.2 µH	Through Hole	Ferrite	10 mOhm	Drum Core Wirewound	10 kHz	Unshielded	9 mm	0.354 in	-20 ░C	105 ░C	20 %	Radial Vertical Cylinder	7.5 A		9.8 A
