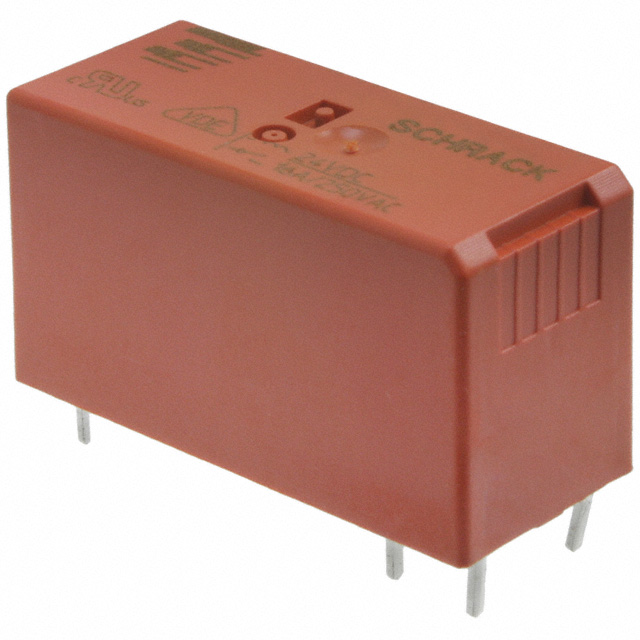

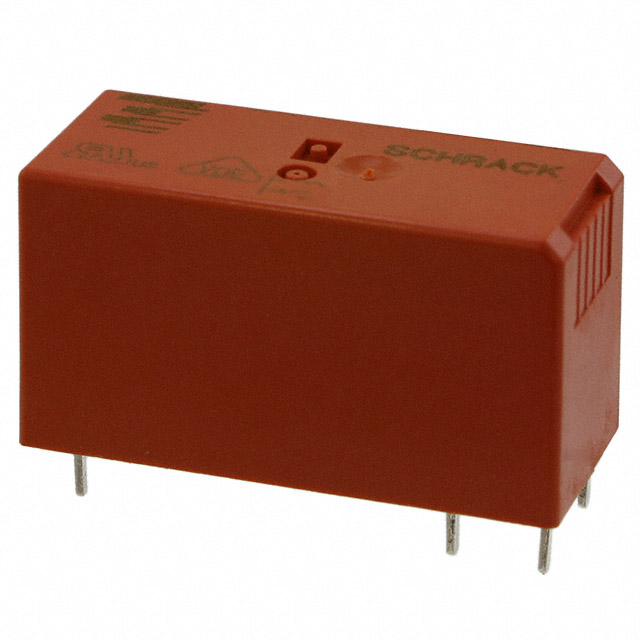

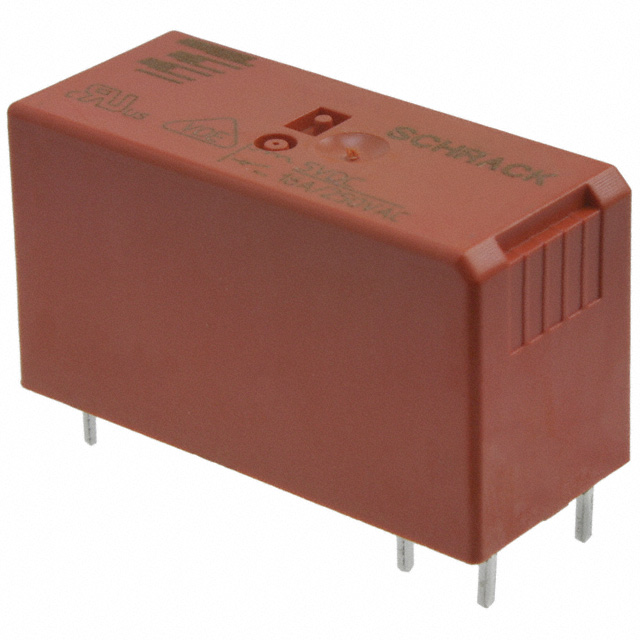

RTX3-1AT Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
POWER RELAY 6VDC 16A SPST-NO(29.1MM 12.7MM 16MM) THT
| Part | Coil Resistance | Contact Form | Contact Rating (Current) | Relay Type | Contact Material | Coil Current | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage | Mounting Type | Must Operate Voltage | Approval Agency | Coil Insulation | Termination Style | Coil Type | Coil Voltage | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 55 Ohms | SPST-NO (1 Form A) | 16 A | General Purpose | Silver Tin Oxide Tungsten | 109 mA | 70 °C | -40 C | 250 VAC | Through Hole | 4.5 VDC | cURus VDE | Class F | PC Pin | Latching Single Coil | ||
 TE Connectivity AMP Connectors | 610 Ohms | SPST-NO (1 Form A) | 16 A | General Purpose | Silver Tin Oxide Tungsten | 40 mA | 70 °C | -40 C | 250 VAC | Through Hole | 18 VDC | cURus VDE | Class F | PC Pin | Dual Coil Latching | 24 VDC | |
 TE Connectivity AMP Connectors | 14 Ohms | SPST-NO (1 Form A) | 16 A | General Purpose | Silver Tin Oxide Tungsten | 216 mA | 70 °C | -40 C | 250 VAC | Through Hole | 2.25 VDC | cURus VDE | Class F | PC Pin | Latching Single Coil | Sealed - Flux Protection | |
 TE Connectivity AMP Connectors | 38 Ohms | SPST-NO (1 Form A) | 16 A | General Purpose | Silver Tin Oxide Tungsten | 130 mA | 70 °C | -40 C | 250 VAC | Through Hole | 3.75 VDC | cURus VDE | Class F | PC Pin | Latching Single Coil | 5 VDC |
