FS900R08 Series
Manufacturer: INFINEON
Beta
⌘K

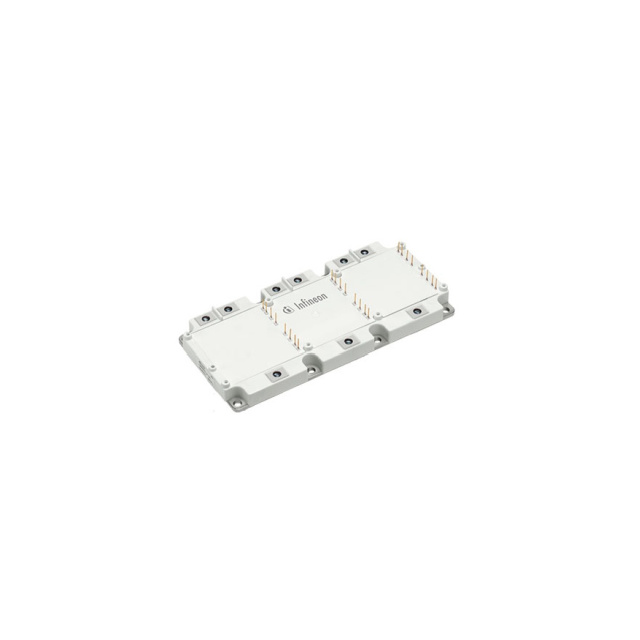

THE FS900R08A2P2_B32 IS AN AUTOMOTIVE QUALIFIED SIXPACK IGBT EDT2 MODULE IN A HYBRIDPACK™ 2 HOUSING FOR AUTOMOTIVE APPLICATIONS UP TO 750 V AND 900 A.
| Part | Supplier Device Package | Package / Case | Vce(on) (Max) @ Vge, Ic | Current - Collector (Ic) (Max) [Max] | Configuration | Input Capacitance (Cies) @ Vce | Current - Collector Cutoff (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Collector Emitter Breakdown (Max) [Max] | Mounting Type | Input | NTC Thermistor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | AG-HYBRID2-1 | Module | 1.25 V | 550 A | Three Phase Inverter | 105 nF | 500 çA | -40 °C | 150 °C | 750 V | Chassis Mount | Standard | |
INFINEON | AG-HYBRID2-1 | Module | 1.25 V | 900 A | Three Phase Inverter | 105 nF | 500 çA | -40 °C | 150 °C | 750 V | Chassis Mount | Standard |
